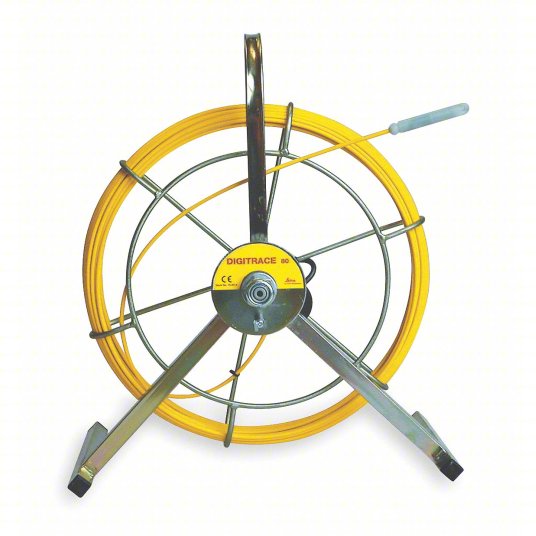

LEICA DD Service Tracer: Trace Rod, Underground Cable and Utility Line Locator Transmitter, Yellow
Item 2VCX8
Mfr. Model TRACE ROD 80
These trace rods pair with underground utility locators and transmitters to identify the precise location of underground sewers, drains, and other nonconductive pipes and utilities.
Brand
LEICA DD
LEICA DD
Manufacturer Part Number
TRACE ROD 80
TRACE ROD 80
Product Type
Trace Rod
Trace Rod
ApplicationSignal Transmitter and Locator to Trace Non-Conductive Ducts or Pipes up to 4 in Diameter
Cable Length263 ft
Color
Yellow
Yellow
FeaturesCan be Used in Line or Sonde Mode to Trace the Route of the Duct or a Blockage
For ModesLine; Sonde
For Use On
Non-Conductive Ducts or Pipes
Non-Conductive Ducts or Pipes
For Use
Cable and Utility Line Locator Transmitter
Cable and Utility Line Locator Transmitter
Material
Fiberglass Rod over Copper Wire
Fiberglass Rod over Copper Wire
Outside Diameter
0.2 in
0.2 in
Overall Depth
17.3 in
17.3 in
Overall Height
19.3 in
19.3 in
Overall Width
8.3 in
8.3 in
Product Type
Trace Rod
Trace Rod
UNSPSC
41111615
41111615
Country of Origin
United Kingdom
United Kingdom
