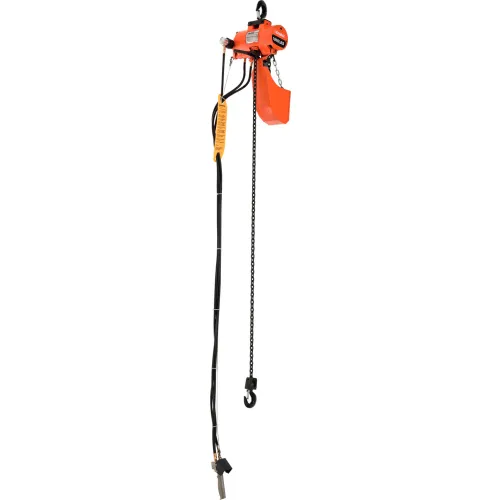

Air Chain Hoist, 300 lb Capacity, 10' Lift, Single Reeved, 84 FPM Lift Speed
Model #: WB298625
10' lift height 300-pound lifting capacity
3/8 NPTF female air hose connection
Chain stops and limit blocks for safe use
The 300-pound lift-capacity Global Industrial™ Air Chain Hoist is made with a compact aluminum housing, a single-reeve, and a standard 3/8 NPTF female air hose connection that enables it to lift heavy weights up to 10-feet in the air at 84 feet/minute utilizing a compressed air system at a minimum of 90 PSI. Equipped with chain stops and limit blocks for safe operation with pull, latch & unlatch to keep the line moving, it is easy to operate. Includes top hook with latch and chain hook. Limited 1-Year Warranty.
Lever-type pendant control with 7' cord Aluminum housing is lightweight and strong Corrosion- & scratch-resistant orange powder coat finish65 feet/minute maximum lowering rate1/2" minimum inside hose diameter Some assembly required
3/8 NPTF female air hose connection
Chain stops and limit blocks for safe use
The 300-pound lift-capacity Global Industrial™ Air Chain Hoist is made with a compact aluminum housing, a single-reeve, and a standard 3/8 NPTF female air hose connection that enables it to lift heavy weights up to 10-feet in the air at 84 feet/minute utilizing a compressed air system at a minimum of 90 PSI. Equipped with chain stops and limit blocks for safe operation with pull, latch & unlatch to keep the line moving, it is easy to operate. Includes top hook with latch and chain hook. Limited 1-Year Warranty.
Lever-type pendant control with 7' cord Aluminum housing is lightweight and strong Corrosion- & scratch-resistant orange powder coat finish65 feet/minute maximum lowering rate1/2" minimum inside hose diameter Some assembly required
Weights & Dimensions
| Length | 12-1/8 in |
| Width | 9-5/8 in |
| Height | 18-1/2 in |
| Weight Capacity | 300 lbs |
| Weight | 44 lbs |
| Control Cord Length | 7.2 ft |
| Air Supply Hose Minimum Size | 1/2" I.D. |
| Head Room | 15-1/4 in |
| Lift | 10 ft |
| Lift Speed | 84 ft/min |
Product Details
| Assembly Required | Yes |
| Type | Chain Hoist |
| Color | Orange |
| Air Lubrication | Air Hoist Motor Oil Or 10W |
| Air Inlet Port | 3/8 NPTF Female |
| Air Supply Requirement | 90 PSI |
| Style | Hook |
| Reeving | 1 |
| Material | Aluminum |
| Package Quantity | 1 |
| Manufacturers Part Number | 298625 |
| Suspension | Hook |
| Brand | asd |
Warranty
| Warranty | 1 yr |
