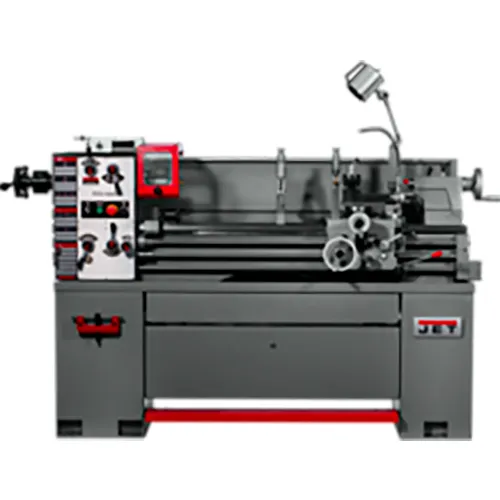

JET® EVS-1440B Electronic Lathe with Newall DP700 DRO, Taper Attach & Collet Closer, 3PH, 230V
Model #: WBB3169402
MPN #: JT9-311451
The EVS-1440B is engineered to maximize your shop's output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004''. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Features:
- Compound and cross slide have backlash elimination
- Electronic Chuck Key Docking Station
- Front Removable Chip Tray
- Full Length Splash Guard
- Independent lead screw and feed rod
- Integrated locking tool storage cabinet in the stand
- LED RPM readout allows for precise turning speeds
- Safety on/off switch
- Treading Dial Indicator
- V-Way bed design is induction hardened and ground
Weights & Dimensions
| Length | 68-1/2 |
| Width | 28-5/16 in |
| Height | 50 in |
| Weight | 1320 lbs |
| Distance Between Centers | 40 in |
| Compound Slide Travel | 3-1/2 in |
| Swing Over Bed | 14 in |
| Max Tool Size | 3/4 x 3/4 in |
| Cross Slide Travel | 7 in |
| Length of Gap | 9-1/2 in |
| Spindle Bore | 1-1/2 in |
| Swing Through Gap | 19- 1/2 in |
| Tailstock Spindle Travel | 6-1/8 in |
| Swing Over Cross Slide | 9-1/16 in |
| Number of Threads per Inch | 34 in |
| Width of Bed | 7-1/2 in |
Product Details
| Spindle Mount | D1-4 |
| Motor Voltage | 230 V |
| DRO | Newall DP700 |
| Motor | 3HP, 230V, 3Ph, Prewired 230V |
| Phase | 3 |
| Manufacturers Part Number | JT9-311451 |
| Motor Horsepower | 3 HP |
| Taper Attachment | Yes |
| Collet Closer | Yes |
| Range of Metric Threads | 0.5-12 mm |
| Brand | JET |
| Spindle Taper with Sleeve | MT-5 |
| Number of Metric Threads | 34 |
| Taper in Tailstock Spindle | MT-3 |
| Number of Longitudinal & Cross Feeds | 25 |
| Range of Spindle Speeds | 40 - 2,000 rpm |
| Prewired | 230V |
