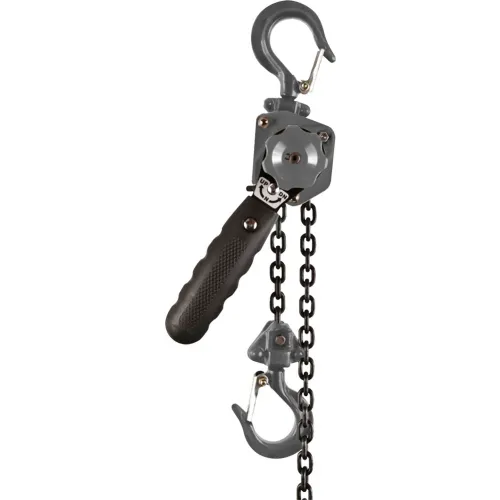

JET® JLP-A Series Mini-Puller Lever Hoist 1/4 Ton, 5 Ft. Lift
Model #: WBB2338739
MPN #: JT9-287100
JET® JLP-A Series lever hoists combine safety, reliability,and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Features:
Features:
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging.
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
- This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
Weights & Dimensions
| Length | 8-1/4 in |
| Width | 3-1/8 in |
| Height | 2-7/16 in |
| Weight Capacity | 500 lbs |
| Weight | 5 lbs |
| Hook Opening | 1.4 in |
| Handle Length | 5-9/10 in |
| Load Chain Diameter | 4X12 mm |
| Head Room | 8-1/4 in |
| Lift | 5 ft |
| Effort to Move Max Weight Capacity | 60 lbs |
Product Details
| Assembly Required | No |
| Type | Standard Chain Hoist |
| Color | Gray |
| Series | JLP-A |
| Hook Type | Standard |
| Chain Falls | 1 |
| Manufacturers Part Number | JT9-287100 |
| Suspension | Hook |
| Brand | JET |
Warranty
| Warranty | Lifetime |
Compliance & Certifications
| Certifications | ANSI/ASME B30.21 & HST-3 |
