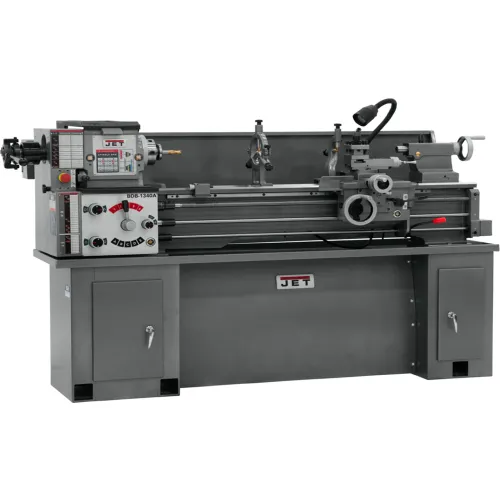

JET BDB-1340A with ACU-RITE 203 DRO with Collet Closer

  • Sale
  • $23,967.00


JET BDB-1340A with ACU-RITE 203 DRO with Collet Closer

Model #: WBB3082313

MPN #: JT9-321108

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with features you've come to expect, all backed by the industry leading JET Two Year Warranty. Enclosed gearbox design provides smooth, quiet operation. Fast, easy speed changes. Low voltage motor controls. Helical cut headstock gears reudce noise. Change gears allow metric threading. Spindle is supported by precision tapered roller bearings. V-way bed is induction hardened and ground. Gap bed section provided for large diameter work. Independent leadscrew and feed rod.

Weights & Dimensions

Distance Between Centers 40 in
Spindle Bore 1-3/8 in
Swing Over Bed 13 in
Cross Slide Travel 7-25/32 in

Product Details

Spindle Mount D1-4
Motor Voltage 230 V
DRO Acu-Rite 203
Voltage N/a V
Phase 1
Description BDB-1340A With ACU-RITE 203 DRO WITH COLLET CLOSER
Manufacturers Part Number JT9-321108
Motor Horsepower 2 HP
Collet Closer Yes
Brand JET
