Kalamazoo 1CC, 5C Collet Fixture for Chucks - 1CC

Kalamazoo 1CC, 5C Collet Fixture for Chucks - 1CC

  • Sale
  • $819.00

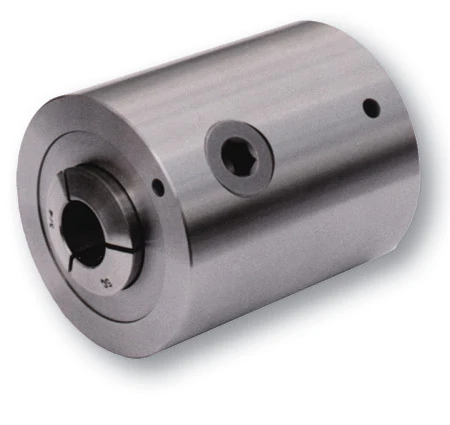

Kalamazoo 1CC, 5C Collet Fixture for Chucks - 1CC

SKU:1cc
100067
5C collet chuck. For short runs. Chuck the OD in your power or manual chuck for quick set up on 5C collets.

Don’t remove your power chuck just use the 1CC . 1/2 turn lock and release. Dead length !!

  • Infinite adjustment of 5C collet by threading collet in or out then 1/2 turn lock.
  • Mount in: vertical/horizontal mills or machining centers, 4th axis, Etc.
  • Stack units for multiple parts. Hardened and ground.
  • Drilled/tapped holes and pilot in rear for fixture mount.
  • Includes Hex Key, Weight: 8 lbs. Made in USA !!
  • Dim. 3"W x 3-1/2"L
  • Model: 1CC

Kalamazoo
