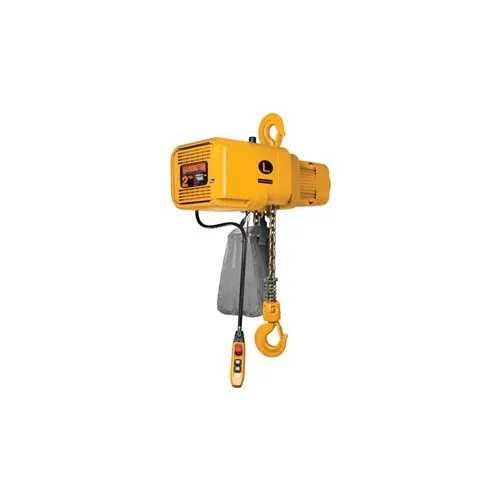

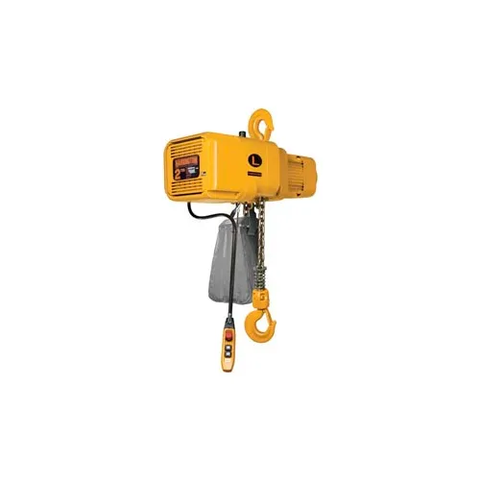

Harrington NER020CD-15 NER Dual Speed Electric Chain Hoist - 2 Ton, 15' Lift, 7/1 ft/min

  • Sale
  • $9,081.00


Harrington NER020CD-15 NER Dual Speed Electric Chain Hoist - 2 Ton, 15' Lift, 7/1 ft/min

Model #: WBB1797061

MPN #: NER020CD-15

The NER dual speed series of electric chain hoists from Harrington incorporate an under the cover variable frequency drive giving the hoist amazing load control and field adjustable two speeds with up to a 12:1 speed ratio. Features include "The Guardian": Smart Brake Technology, a current driven electromagnetic brake that does not release unless the motor is energized, Grade 80 nickel plated load chain, variable frequency drive allowing speed adjustability and integral count hour functionality which records and displays the number of lowering starts and hoist on time, 5 pocket load sheave to reduce vibration and extend chain life, cooler motor and brake attributed to the fan cooled motor, low profile upper and lower limit switches and plug in pendant and power supply cords. Hoist are UL listed to UL 1340, built environmentally friendly meeting RoHS requirements and exceed ASME H4 Duty Rating. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

Weights & Dimensions

Weight Capacity 4000 lbs
Weight 145 lbs
Control Cord Length 11 ft
Head Room 27-13/16 in
Lift 15 ft
Lift Speed 7/1 ft/min

Product Details

Assembly Required Yes
Type Double Chain
Horsepower 1-3/16 HP
Color Yellow
Number of Speeds 2
Series NER
Hertz 60 Hz
Voltage 230 V
Material Die-Cast Aluminum Body
Phase 3
Manufacturers Part Number NER020CD-15
Operating Conditions -4°F to 104°F
Brand Harrington
