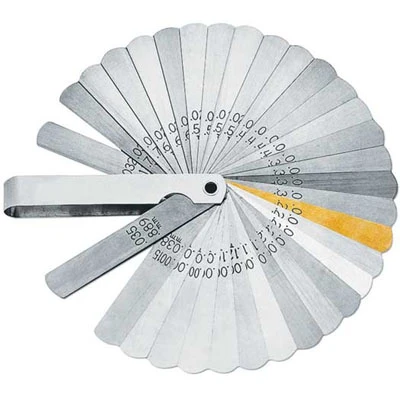

Lang Tools 32-Blade Feeler Gauge (36A)

Lang Tools 32-Blade Feeler Gauge (36A)

  • Sale
  • $59.55

Lang Tools 32-Blade Feeler Gauge (36A)

The Lang Tools 32-Blade Feeler Gauge (36A) is a fundamental and precise instrument engineered for accurately measuring small gaps, clearances, and tolerances in various mechanical and automotive applications. This comprehensive set is an indispensable tool for mechanics, technicians, and DIY enthusiasts who require exact measurements for optimal engine performance, ignition system adjustments, and general component fitment. Crafted with quality materials, this feeler gauge ensures reliable and consistent readings, contributing to the longevity and efficient operation of machinery.

KEY FEATURES AND BENEFITS:

  • Comprehensive Thickness Range: Offers 32 distinct blades with thicknesses from 0.0015 inches to 0.035 inches, providing a wide array of options for diverse measurement needs.
  • Specialized Brass Blade: Includes a dedicated 0.010 inch brass blade, essential for use with transistorized engines where non-magnetic properties are crucial for sensitive components.
  • Precision Blade Design: Each blade measures 3 inches long by 1/2 inch wide, allowing for easy insertion into tight spaces while maintaining rigidity for accurate measurements.
  • Clear and Permanent Markings: Both decimal and metric equivalent sizes are permanently etched onto each blade, ensuring quick, easy, and accurate identification without wear over time.
  • Versatile Application: Primarily designed for ignition system adjustments and general-purpose measuring tasks, making it a versatile tool for various automotive and mechanical maintenance procedures.
  • Quality Construction: Made with tempered steel for the majority of blades, ensuring durability and consistent performance over prolonged use.

SPECIFICATIONS:

  • Number of Blades: 32
  • Blade Material: Thirty-one steel blades, one 0.010 inch brass blade
  • Blade Length: 3 inches
  • Blade Width: 1/2 inch
  • Thickness Range: 0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035 inches. Includes an additional 0.010 inch brass blade.
  • Product Dimensions: 5.719" X 3" X 0.625"
  • Included in Product: One (1) Lang Tools 32-Blade Feeler Gauge (36A)

HOW TO USE:

  1. Identify the Required Clearance: Consult your vehicle or equipment's service manual to determine the precise gap or clearance measurement needed for the component you are working on (e.g., spark plug gap, valve lash, ignition points).
  2. Select the Correct Blade: Locate the blade or combination of blades that matches the required thickness. The sizes are clearly etched on each blade for easy identification.
  3. Clean the Surface: Ensure the surfaces where the measurement will be taken are clean and free of dirt, oil, or carbon buildup, as contaminants can affect accuracy.
  4. Insert the Blade: Gently slide the selected feeler gauge blade into the gap. It should slide in with slight drag, indicating the correct clearance. If it's too loose, the gap is too wide; if it doesn't fit, the gap is too narrow.
  5. Adjust and Re-measure: If adjustments are necessary, make them according to the service manual's instructions (e.g., bending spark plug electrodes, adjusting screws). After each adjustment, re-insert the feeler gauge to verify the new clearance.
  6. Use Brass Blade for Specific Applications: When working with transistorized ignition systems or other sensitive electronic components, always use the dedicated 0.010 inch brass blade to prevent magnetic interference or damage.
  7. Clean and Store: After use, wipe down the blades to remove any oil or debris and store the feeler gauge in its protective casing to prevent damage and maintain accuracy.

BENEFITS OF USING LANG TOOLS 32-BLADE FEELER GAUGE (36A):

  • Facilitates precise engine tuning and maintenance, leading to improved performance and fuel efficiency.
  • Helps prevent damage to engine components by ensuring correct clearances are maintained.
  • Simplifies complex measurement tasks with its wide range of clearly marked blades.
  • Extends the lifespan of machinery by allowing for accurate adjustments and preventing excessive wear.
  • Offers reliability and accuracy, crucial for professional mechanics and serious hobbyists.

FEATURES:

  • Contains a diverse set of 32 measuring blades.
  • Each blade length and width is consistent at 3 inches by 1/2 inch.
  • Features an etched scale on every blade, showing both imperial and metric values.
  • Includes a specialized non-magnetic brass blade of 0.010 inch thickness.
  • Designed for measuring clearances, gaps, and precise spacing.
  • Constructed from tempered spring steel for most blades.
  • Suitable for both diagnostic checks and adjustment procedures.
