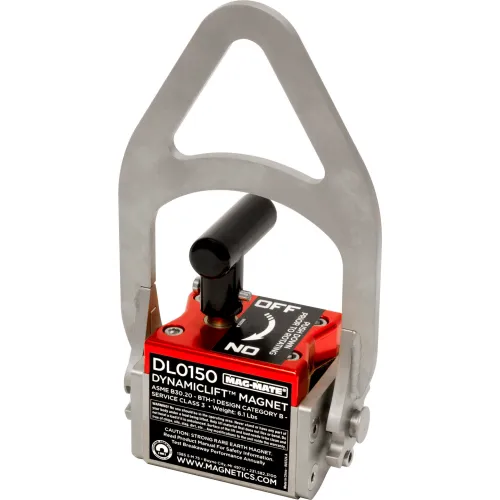

MAG-MATE® DynamicLift™ DL0150 Manual Lifting Magnet 150 Lbs. Capacity
Model #: WBB2263904
MPN #: DL0150
these lightweight switchable Rare Earth permanent lift magnets can be used on flat or round (pipe) surfaces. Contains an internal On/Off release device that does not contact or damage the surface of the part. Top mounted rotating On/Off actuation handle allows this magnet to be used in tight spots like C-Chanel, bins or other narrow spots. The lift lug can be place in two positions, one for horizontal liftig of flat or round load or the other position for vertically for lifting flats.
Features:
Features:
- On/Off Permanent Rare Earth Magnet
- Handle Locks in the On Position
- Lifts Flat or Round Loads
- Easy Internal Manual Release Does Not Contact the Load
- Large swivel lift lug
- Heat Resistant Up To 180⁰F (82⁰C)
- 3:1 Design Factor
- Conforms To ASME B30.20 Standard
- Magnet Size: 3"L x 2-1/2"W x 2-3/4"H
- 2 Poles
Weights & Dimensions
| Length | 5 in |
| Width | 2-1/2 in |
| Height | 9 in |
| Weight Capacity | 150 lbs |
| Weight | 6 lbs |
| Base Diameter Or Dimension | 3 x 2-1/2 in |
| Handle Length | 2-1/2 in |
| Bail Opening | 1/4 x 2-1/4 x 3 in |
| Magnet Size | 3" x 2-1/2" x 2-3/4" |
| Min Thickness | 1/4 in |
Product Details
| Assembly Required | No |
| Color | Red |
| Style | Manual Lifting Magnet |
| Material | Steel/Rare Earth |
| Package Quantity | 1 |
| Manufacturers Part Number | DL0150 |
| Brand | Mag-Mate |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | ASME B30.20 BTH-1 Design Category B Service Class 3 |
