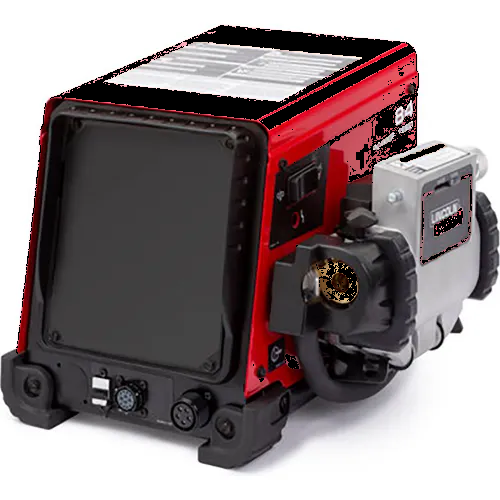

Lincoln Electric® Power Feed® 84 Single Semiautomatic Boom Wire Feeder, No U/I, 40 VDC
Model #: WBB3172984
MPN #: K3328-1
The Power Feed® 84 single digital control semiautomatic wire feeder is modular and built for a variety of welding applications. The Power Feed® Family raises the bar for advanced process feeders by providing comprehensive process adjustability and control in a simple to use, rugged design.
Features:
- New Auto-Settings simplify process setup
- Eight User Memories - Per feed head for complete welding procedure recall
- USB Port - Simplifies machine setup and expands user profiles
- User Interface - Can be customized to display customer specific information
- Contactor and gouge kit isolate the feedheads for additional safety
- Improved isolation & environmental protection
- Robust connection points allow for reliable operation in tough conditions
- Modularity ensures the feeder can be configured to fit a variety of application needs
What's Included
- Standard #2 - #4 gun adapter 20 tooth pinion gear Conduit inlet bushing (K3929-1)
Weights & Dimensions
| Length | 27-7/8 |
| Width | 15-1/2 |
| Height | 25-3/16 in |
| Weight | 38 lbs |
| Size | 27-7/8 x 15-1/2 x 25-3/16 in |
Product Details
| Duty Cycle | 600A @ 60% |
| Application | Construction, Mining, Automotive, Brewery, Oil & Gas, Repair Welding, Distillery |
| Amperage | 600 A |
| Process | MIG, Pulsed MIG, MIG-STT®, Flux-Cored, Stick, TIG, Gouging |
| Voltage | 40 V |
| Description | Boom Wire Feeder |
| Package Quantity | 1 |
| Manufacturers Part Number | K3328-1 |
| Brand | Lincoln Electric |
Warranty
| Warranty | 5 yr |
