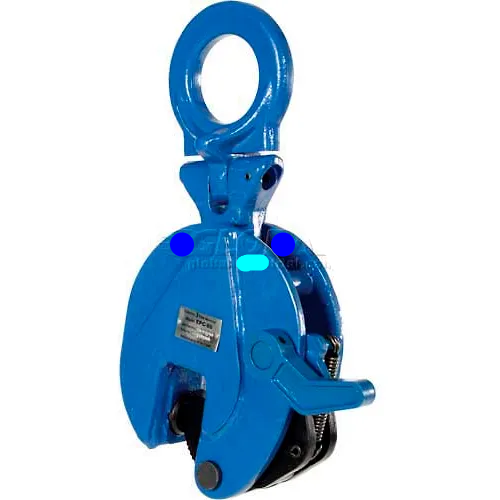

Vertical Plate Clamp Lifting Attachment EPC-80 6600 Lb. Capacity
Model #: WB251515
MPN #: EPC-80
VERTICAL PLATE CLAMP Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
Weights & Dimensions
| Weight Capacity | 6600 lbs |
| Weight | 38 lbs |
| Throat Depth | 3 in |
| Max Plate Thickness | 1.10 in |
| Bail Opening | 2.3 in |
Product Details
| Assembly Required | No |
| Type | Vertical |
| Material | Steel |
| Color | Blue |
| Manufacturers Part Number | EPC-80 |
| Brand | Vestil |
