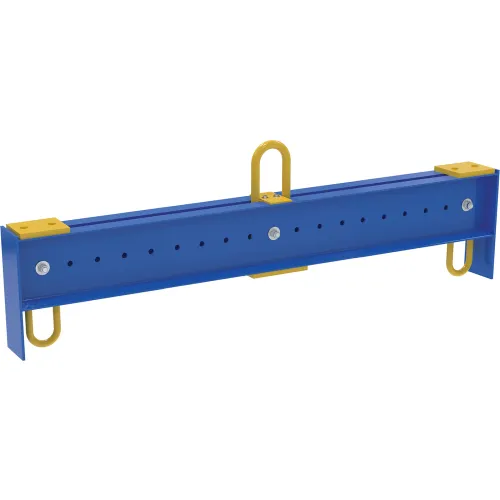

Vestil™ Steel Adjustable Spreader Beam, 6' Maximum Spread, 10000 lb. Capacity, 80-1/2"L
Model #: WBB3221658
MPN #: SBM-BFB-100-6
An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.
Features:
- Designed to lift and move uneven and awkward loads
- Welded steel construction for heavy duty performance
- Adjustable bail to fit a variety of sizes
- Large capacity for use with items both large and small
Weights & Dimensions
| Length | 80-1/2 |
| Width | 6-1/2 in |
| Height | 25-1/2 in |
| Weight Capacity | 10000 lbs |
| Weight | 303 lbs |
| Spread | 24 to 72 in |
| Head Room | 25-1/2 in |
| Upper Bail | 4 x 7-1/2 in |
Product Details
| Assembly Required | No |
| Color | Blue |
| Material | Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | SBM-BFB-100-6 |
| Brand | Vestil |
