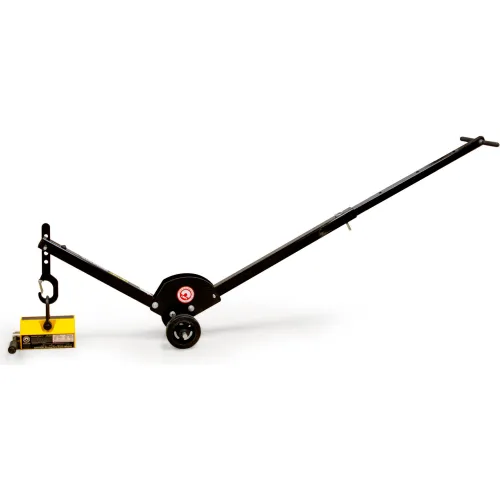

MAG-MATE® MCL2W06PNL1600 Manhole Cover Magnet & Dolly System 400 Lbs. Capacity

  • Sale
  • $3,193.00


MAG-MATE® MCL2W06PNL1600 Manhole Cover Magnet & Dolly System 400 Lbs. Capacity

Model #: WBB2263896

MPN #: MCL2W06PNL1600

Easily move heavy manhole covers up to 400 Lb. without worrying about your fingers, toes and back. This cover lift system uses a patented adjustable dolly that has four-postion hook with a four-length retractable handle for terrific leverage, even in tight spots. The three angle positions (90°, 105° or 120°) lets you adjust the system for any lfting situations. The safety latch hook makes grabbing the magnet a one-peron job. It doesn't matter if your are 5'6" or 6'5" tall, the dolly can be adjusted to ergonomically accommodate any user. Just push down with your arms not bending over with your back.
Features:
  • On/Off Rare Earth Permanent Magnet
  • Handle locks in both On and Off position
  • RFID Enabled
  • 3:1 Design Factor
  • Conforms to ASME B30.20 Standards
  • Steel adjustable dolly to provide outstanding ergonomics
  • Dolly folds up for easy storage
  • Safety latch hook
  • Reduced lost time injuries caused by handling covers
  • Makes moving covers fast, easy and a one-person operation
  • 6" diameter wheels.
  • Magnet Size: 9-1/8"L x 4-7/8"W x 4-3/4"H
  • 2 Poles

Weights & Dimensions

Length 41 in
Width 13 in
Height 12 in
Weight Capacity 400 lbs
Weight 97 lbs
Wheel Diameter 6 in
Base Diameter Or Dimension 9-1/4 x 4-7/8 in
Handle Length 64 in
Bail Opening 5/8 x 3-1/2 x 2-1/4 in
Magnet Size 10-3/4" x 4-7/8" x 4-3/4"
Min Thickness 1/2 in

Product Details

Assembly Required Yes
Color Black
Style Manhole Cover Magnet & Dolly System
Material Steel/Rare Earth
Package Quantity 1
Manufacturers Part Number MCL2W06PNL1600
Brand Mag-Mate

Warranty

Warranty 1 yr

Compliance & Certifications

Certifications ASME B30.20 BTH-1 Design Category B Service Class 3
