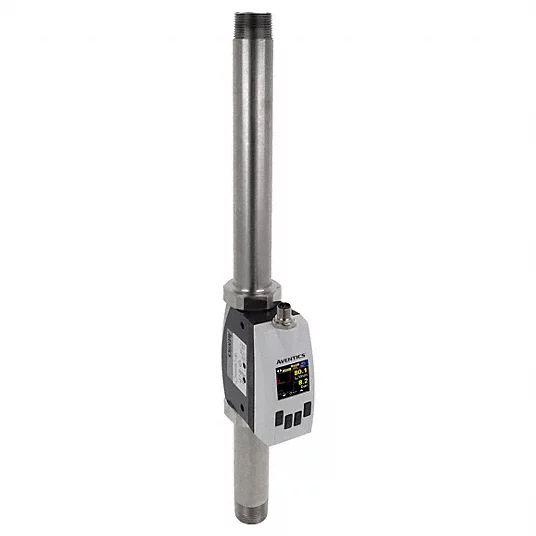

NUMATICS Flow Sensor: 1 in NPT Inlet Size, 1 in NPT Outlet Size, Colored and Rotatable OLED Display
Item 806HG4
Mfr. Model 8653AVBP6JA001N
Numatics compressed air flow rate sensors have a wide flow measurement range, an integrated pressure sensor, and an OLED display to clearly show measurements, process curves, and cumulative values. Data can be communicated via customizable switch or analog outputs, or through IO-Link. Data can also be transferred directly via the Ethernet interface, making them capable of both direct and remote monitoring. Sensors can be installed within an FRL system or as a standalone unit.
Brand
NUMATICS
NUMATICS
Inlet Size
1 in NPT
1 in NPT
Outlet Size
1 in NPT
1 in NPT
Digital Display Features
Colored and Rotatable OLED Display
Colored and Rotatable OLED Display
Electrical Connections
8 Pin M12 Connector
8 Pin M12 Connector
Maximum Operating Pressure
16 bar
16 bar
Operating Temperature Range
-20 °C to 50 °C
-20 °C to 50 °C
Input Voltage
24 V DC
24 V DC
Frame Size
653
653
Included Filter
5 micron Particulate Filter
5 micron Particulate Filter
Series
AF2
AF2
Air Inlet Size
1 in
1 in
Air Inlet Type
NPT
NPT
Air Outlet Size
1 in
1 in
Air Outlet Type
NPT
NPT
Air Inlet Gender
Male
Male
Air Outlet Gender
Male
Male
Maximum Operating Temperature
50 °C
50 °C
Minimum Operating Pressure
0 bar
0 bar
Minimum Operating Temperature
-20 °C
-20 °C
Filter Rating
5 micron
5 micron
Filter Type
Particulate
Particulate
Filter Bowl Capacity
113 mL
113 mL
For Fluid Type
Argon; Carbon Dioxide; Compressed Air; Helium; Nitrogen
Argon; Carbon Dioxide; Compressed Air; Helium; Nitrogen
For Substance Type
Air; Nitrogen
Air; Nitrogen
Manufacturer Part Number
8653AVBP6JA001N
8653AVBP6JA001N
Country of Origin
USA
USA
