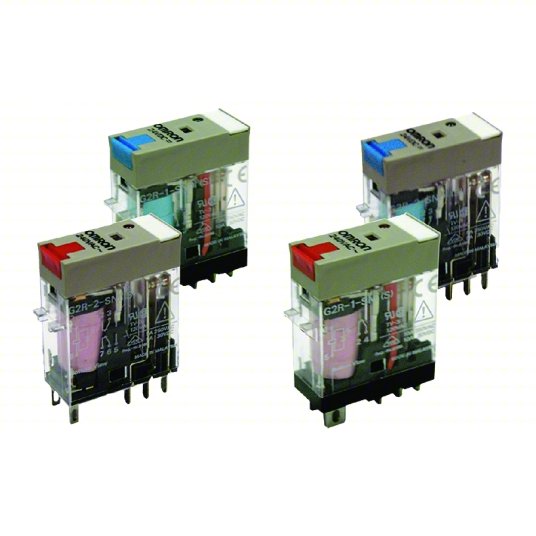

OMRON General Purpose Relays: 48V DC, SPDT, 5 Pins/Terminals
These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically.
Item 811T03
Mfr. Model G2R-1-T DC48
Brand
OMRON
OMRON
Manufacturer Part Number
G2R-1-T DC48
G2R-1-T DC48
Series
G2RS
G2RS
Electrical Connection Type
Tab
Tab
Number of Pins/Terminals
5
5
Coil Voltage
48V DC
48V DC
Contact Form
SPDT
SPDT
Contact Rating (AC)
- 7.5 A @ 250V
- 10 A @ 250V
Contact Rating (DC)
- 5 A @ 30V
- 10 A @ 30V
Status Indicator
No Indicator
No Indicator
Push-To-Test Button
No Test Button
No Test Button
Electrical Operating Durability
100,000
100,000
Mechanical Operating Durability
10,000,000; 20,000,000
10,000,000; 20,000,000
Dielectric Strength1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity; 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Country of Origin
Malaysia
Malaysia
