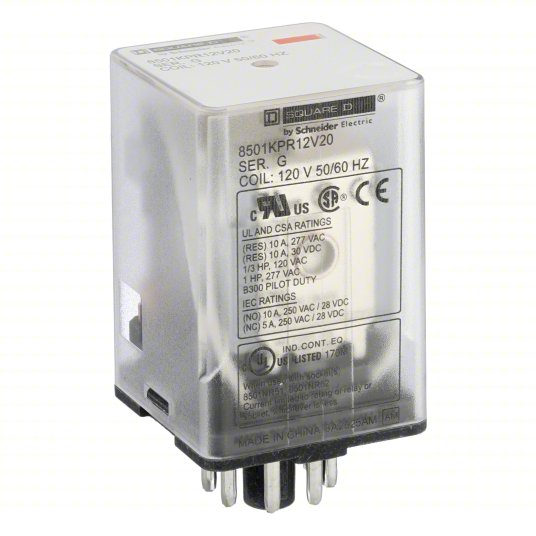

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, DPDT, A Socket
These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically.
Brand
SCHNEIDER
SCHNEIDER
Manufacturer Part Number
8501KPR12V20
8501KPR12V20
Series
Square D 8501K Series
Square D 8501K Series
Relay Mounting Style
Socket
Socket
Electrical Connection Type
Pin
Pin
Number of Pins/Terminals
8
8
Socket Code
A
A
Current Rating
10 A
10 A
Coil Voltage
120V AC
120V AC
Contact Form
DPDT
DPDT
Contact Rating (AC)
10 A @ 277V
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
10 A @ 28V
Motor Rated
Yes_
Yes_
Horsepower @ 120V AC
1/3 hp
1/3 hp
Horsepower @ 240V AC
1/2 hp
1/2 hp
Status Indicator
Mechanical Flag
Mechanical Flag
Push-To-Test Button
No Test Button
No Test Button
Sealing
Enclosed
Enclosed
Coil Voltage (Nominal@60Hz)
120V AC
120V AC
UNSPSC
39121515
39121515
Country of Origin
China
China
Item 2DT07
Mfr. Model 8501KPR12V20
