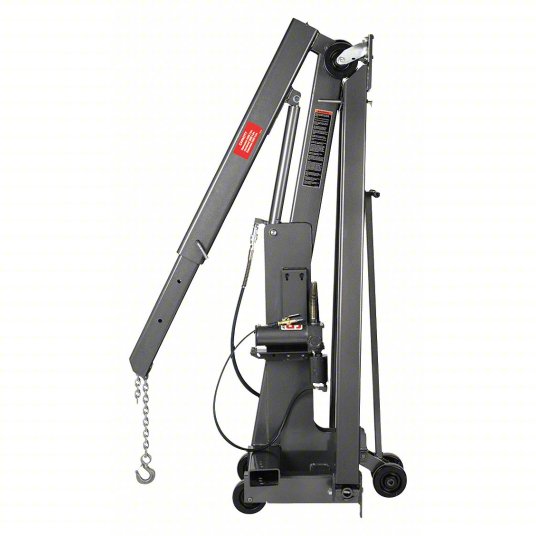

GRAY Engine Crane: Engine Crane, 27 in Chain Lg, Steel, 2 ton Load Capacity, 3 Boom Positions, Gray
Engine cranes (or hoists) help remove or install engines in small or crowded vehicle engine compartments. These lifting devices have beamed supports to hold the engine up over a vehicle so that maintenance can be performed on parts, hoses, electrical wiring, or timing chains. Cranes are used with engine stand supports to safely rotate engines for repairs anywhere on the vehicle.
Item 36G637
Mfr. Model SC440 Air
Brand
GRAY
GRAY
Product Type
Engine Crane
Engine Crane
Chain Length
27 in
27 in
Frame Material
Steel
Steel
Load Capacity
2 ton
2 ton
Number of Boom Positions
3
3
Boom Capacity (Retracted)
1.09 ton
1.09 ton
Color
Gray
Gray
Overall Length
81-4/5 in
81-4/5 in
Overall Height
119 in
119 in
Boom Capacity (Second Position)
1.9 ton
1.9 ton
Boom Capacity (Third Position)
1.64 ton
1.64 ton
Display Qty
1
1
Display Sell UOM
EA
EA
Extended Boom Length
50-3/4 in
50-3/4 in
FeaturesHydraulic Ram Has Metering Release Valve for Lowering Boom At A Controlled Rate; Legs Adjust for Clearance Allowing User to Move The Floor Crane Where It's Needed
Frame Material Finish
Painted
Painted
Lifting Actuator
Pneumatic
Pneumatic
Manufacturer Part Number
SC440 Air
SC440 Air
Retracted Boom Length
35-3/4 in
35-3/4 in
Standards
ASME PALD
ASME PALD
Sub-brand
Gray
Gray
Wheel Diameter
5-9/10 in
5-9/10 in
UNSPSC
24101630
24101630
Country of Origin
USA
USA
