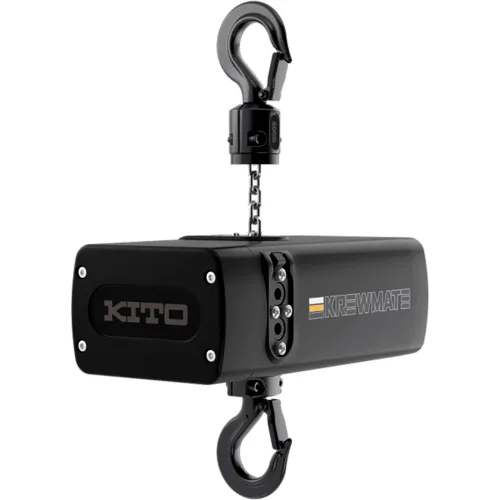

Kito Krewmate TEM Mini Entertainment Hoist, 1/4 Ton Capacity, 60' Lift, 4.8 FMP, 460V

  • Sale
  • $4,493.00


Kito Krewmate TEM Mini Entertainment Hoist, 1/4 Ton Capacity, 60' Lift, 4.8 FMP, 460V

Model #: WBB3201833

MPN #: TEM003L-60 460V

Head Room12-3/8 in

The Kito Krewmate mini three phase entertainment chain hoists were designed with a state-of-the-art control system using solid state relay (SSR) technology and a microcontroller unit (MCU) to increase the longevity of the hoist and provide superior safety functions. These high quality, low-headroom, fully-featured motors provide reliable performance in theaters, concert halls, arenas and studios. -4°F to +104°F and humidity of 85% or less. Factory load tested to 125% of rated capacity, UL 1340, CSA 22.2.

Features:

  • Compact and rugged diecast aluminum body with no sharp edges. Superior ingress protection makes it suitable for both indoor and outdoor applications. IP65 rated. Conveniently fits inside 12 inch truss
  • 360 degree swiveling top and bottom hooks with heavy-duty hook latches
  • Nickel-plated, DIN chain for superb durability, strength and corrosion resistance. EN 818-17 standard

Weights & Dimensions

Length 11-1/2 in
Width 8-5/8 in
Height 24-13/16 in
Weight Capacity 500 lbs
Weight 30.2 lbs
Head Room 12-3/8 in
Lift 60 ft
Lift Speed 16 ft/min

Product Details

Type Chain Hoist
Horsepower 5/16 HP
Color Black
Series TEM
Hertz 60 Hz
Duty Rating H4
Voltage 460 V
Material Aluminum
Chain Falls 1
Phase 3
Manufacturers Part Number TEM003L-60 460V
Operating Conditions -4°F to +104°F
Brand Kito
Certifications UL, CSA



User manuals/guides(1)




Warranty 3 yr
