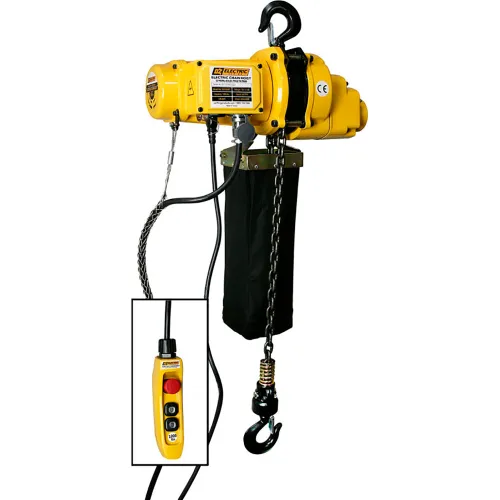

OZ Lifting 1/2 Ton Electric Chain Hoist, 20' Lift, 20 FPM, 115V

  • Sale
  • $1,893.00


OZ Lifting 1/2 Ton Electric Chain Hoist, 20' Lift, 20 FPM, 115V

Model #: WBB2291987

MPN #: OZ1000EC

OZ Lifting Electric Chain Hoist - 1000 Lbs Capacity

The OZ1000EC is a lightweight, advanced electric chain hoist with 20ft. of lift. This compact and powerful hoist is easy to install and operate. Connect to a standard 110VAC outlet and the OZ1000EC is ready for use. Chain bag & pendant included. Designed with durability and convenience in mind this advanced hoist is H3 duty class and are ready to be put to work. Made with Precision machined gears heat treated for strength and durability. Oil bath lubrication on all bearing rotating points for a quieter, smoother and cooler operation. This hoist has an integrated overload protection keeping you and your load safe. The single phase motor provides the power to meet your lifting needs in shops and manufacturing facilities.

Length 6-2/3 in
Width 17-5/7 in
Height 27 in
Weight Capacity 1000 lbs
Weight 53 lbs
Hook Opening 0.87 in
Control Cord Length 19 ft
Head Room 17 in
Lift 20 ft
Lift Speed 20 ft/min

Product Details

Assembly Required No
Type Chain Hoist
Duty Cycle 18 Min
Horsepower 1-4/5 HP
Color Yellow
Hertz 60 Hz
Duty Rating H3
Voltage 115 V
Phase 1
Chain Falls 1
Manufacturers Part Number OZ1000EC
Brand OZ Lifting Products

Warranty

Warranty 1 yr
