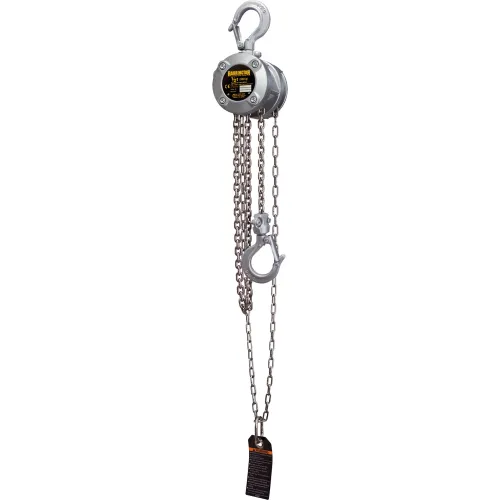

Harrington® CX Manual Mini Hand Chain Hoist, 1/2 Ton Capacity, 10' Lift
Model #: WBB3201802
MPN #: CX005-10
Harrington's® CX mini hand chain hoist is the world's smallest industrial hoist. This uniquely compact and lightweight hoist is the perfect choice for jobs with light loads in high or difficult to reach places such as duct installation, plumbing and heating, home automobile maintenance and crane repair.
Features:
- Aluminum body with steel frame provides superior strength
- Load limiter prevents the hoist from being used to lift damaging loads beyond rated capacity
- Very low force is required to lift load
- Metal chain guide allows smooth operation
- Effortless to transport, install and store
- Powder-coated body is resistant to corrosion, chipping, fading and wear
Capabilities to Count On:
- Grade 100, nickel-plated load chain is corrosion and wear resistant
- Strong hook latches include safety tip
- Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity in accordance with ASME B30.21 requirements
Weights & Dimensions
| Length | 10-3/16 in |
| Width | 4 in |
| Height | 4 in |
| Weight Capacity | 1000 lbs |
| Weight | 10.6 lbs |
| Hook Opening | 1 in |
| Load Chain Diameter | 4.3 mm |
| Head Room | 10-3/16 in |
| Lift | 10 ft |
| Hand Chain Overhaul Length to Lift Load 1 Foot | 86 ft |
| Effort to Move Max Weight Capacity | 44 lbs |
Product Details
| Type | Hand Chain Hoist |
| Color | Silver |
| Series | CX |
| Material | Aluminum |
| Chain Falls | 1 |
| Package Quantity | 1 |
| Manufacturers Part Number | CX005-10 |
| Suspension | Hook |
| Brand | Harrington |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | ASME B30.21 |
