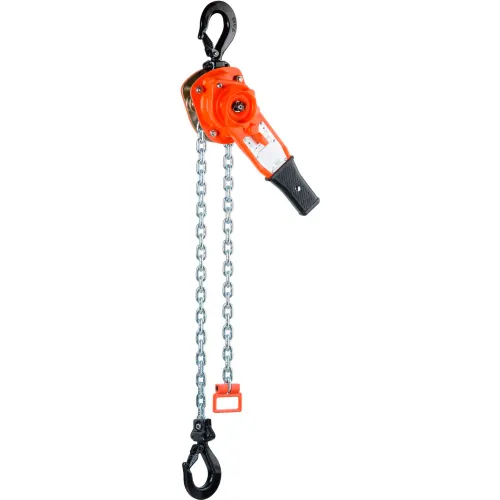

CM Series 653 Ratchet Chain Lever Hoist, 1T Capacity, 15' Lift
Model #: WBB2453017
MPN #: 5328-X15A
The CM Series 653 Lever Operated Hoist features a short handle and minimal lever pull effort combined with high quality, rugged steel for close quarter pulling, stretching, and hoisting applications. This lever hoist is ideal for a wide array of applications in construction, industrial and plant operations.
Weights & Dimensions
| Length | 6.46 in |
| Width | 5.47 in |
| Height | 15.24 in |
| Weight Capacity | 2000 lbs |
| Weight | 25.8 lbs |
| Handle Length | 10.51 in |
| Head Room | 13-1/2 in |
| Lift | 15 ft |
Product Details
| Assembly Required | No |
| Type | Standard Chain Hoist |
| Color | Orange |
| Series | Series 653 |
| Material | Steel |
| Manufacturers Part Number | 5328-X15A |
| Brand | CM |
Warranty
| Warranty | 5 yr |
Brochure(1)
Specifications(1)
Compliance & Certifications
| Certifications | ASME B30.21 |
