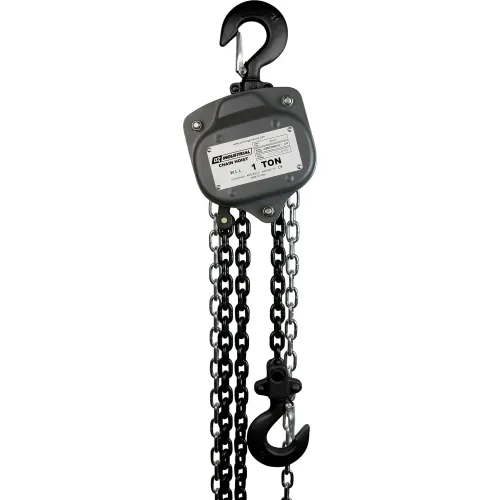

OZ Lifting Industrial Manual Chain Hoist, 1 Ton Capacity 30' Lift
Model #: WBB2322345
MPN #: OZIND010-30CH
Industrial Chain Hoist - Available in sizes from .25 through 2 ton. Standard lifts of 10, 15, 20 and 30 FT (All standard lifts in stock) Individually rigged and tested in the U.S.A. Weatherproof load-holding Weston-type brake with twin pawl design for added safety.
Weights & Dimensions
| Length | 6 in |
| Width | 5-3/4 in |
| Height | 14-3/6 in |
| Weight Capacity | 2000 lbs |
| Weight | 46 lbs |
| Hook Opening | 1.26 in |
| Dimension C | 14.6 in |
| Load Chain Diameter | 6x18 mm |
| Dimension A | 5.98 in |
| Head Room | 14-3/5 in |
| Lift | 30 ft |
| Dimension B | 5.75 in |
| Dimension D | 1.73 in |
| Effort to Move Max Weight Capacity | 66 lbs |
Product Details
| Type | Heavy Duty Hoist |
| Color | Gray |
| Series | Heavy Duty OZ Economy |
| Material | Steel |
| Chain Falls | 1 |
| Manufacturers Part Number | OZIND010-30CH |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 1 yr |
