OZ Lifting OZ3BC Beam Clamp 3 Ton Capacity, Fits Beam Flange Range 3.15"-12.60"
Model #: WBB1583570
MPN #: OZ3BC

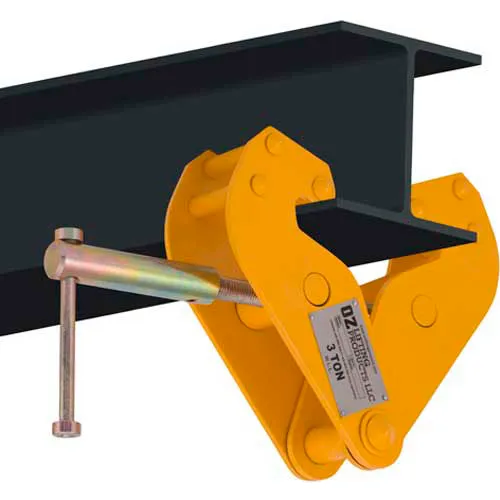

OZ Lifting Beam Clamp, 3 Ton Capacity, Fits Beam Flange Range 3.15"-12.60"
BEAM CLAMP - OZ Beam Clamps are all steel and provide super quick adjustment to most I ,S, and W beams. This clamp features a Durable Baked Enamel Paint, Stainless Steel I.D. tag, and an individual test certificate and serial number.
FEATURES and BENEFITS
- Robust all-steel construction
- Super-quick adjustment to most I-Beams
- Durable baked enamel paint protection
- Stainless steel ID tag
- Individual test certificate & serial number
Weights & Dimensions
| Length | 18-1/2 in |
| Width | 3-15/16 in |
| Height | 8-2/3 in |
| Weight Capacity | 6000 lbs |
| Weight | 21 lbs |
| Dimension F | 5.71 - 8.66 in |
| Dimension C | 3.94 in |
| Dimension H | 0.96 in |
| Dimension A | 3.15 - 12.60 in |
| Head Room | 5-11/16 to 8-2/3 in |
| Flange Width | 3-1/8 to 12-5/8 in |
| Dimension B | 18.5 in |
| Dimension G | 2.63 in |
| Flange Thickness | 1.57 in |
| Dimension D | 1.57 in |
| Dimension E | 10.63 in |
Product Details
| Assembly Required | No |
| Type | Economy Beam Clamp |
| Color | Yellow |
| Material | Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | OZ3BC |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 5 yr |
