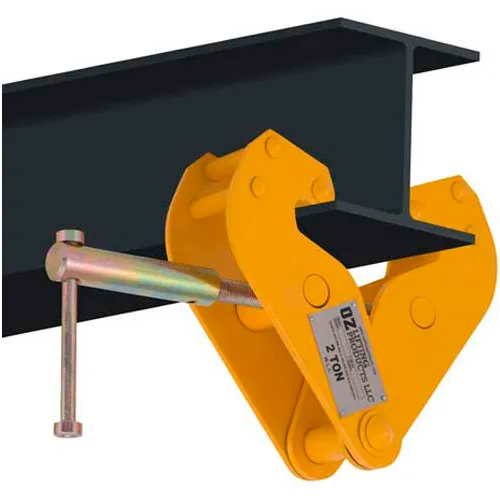

OZ Lifting OZ2BC Beam Clamp 2 Ton Capacity, Fits Beam Flange Range 2.95"-9.05"
Model #: WBB1583569
MPN #: OZ2BC
OZ Lifting Beam Clamp, 2 Ton Capacity, Fits Beam Flange Range 2.95"-9.05"
BEAM CLAMP - OZ Beam Clamps are all steel and provide super quick adjustment to most I ,S, and W beams. This clamp features a Durable Baked Enamel Paint, Stainless Steel I.D. tag, and an individual test certificate and serial number.
FEATURES and BENEFITS
- Robust all-steel construction
- Super-quick adjustment to most I-Beams
- Durable baked enamel paint protection
- Stainless steel ID tag
- Individual test certificate & serial number
Weights & Dimensions
| Length | 14-15/16 in |
| Width | 2-15/16 in |
| Height | 5-7/8 in |
| Weight Capacity | 4000 lbs |
| Weight | 11 lbs |
| Dimension F | 3.54 - 5.90 in |
| Dimension C | 2.91 in |
| Dimension H | 0.87 in |
| Dimension A | 2.95 - 9.05 in |
| Head Room | 3-9/16 to 5-7/8 in |
| Flange Width | 3 to 9 in |
| Dimension B | 14.96 in |
| Dimension G | 1.02 in |
| Flange Thickness | 0.9 in |
| Dimension D | 0.9 in |
| Dimension E | 9.13 in |
Product Details
| Assembly Required | No |
| Type | Economy Beam Clamp |
| Color | Yellow |
| Material | Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | OZ2BC |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 5 yr |
