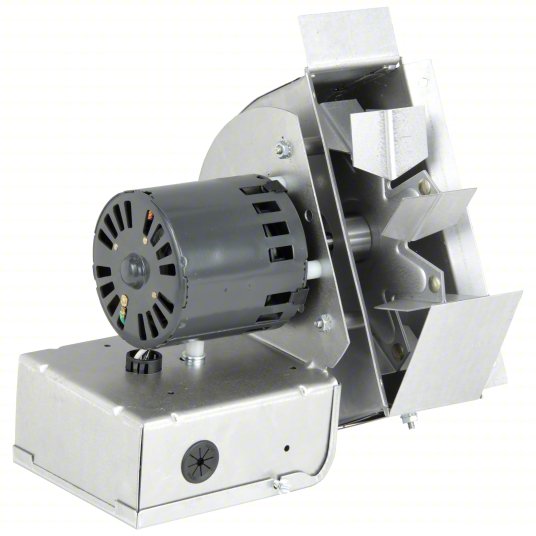

Draft Inducer: For Boilers/Furnaces/Water Heaters, For 3 in to 6 in Pipe, 115V AC
Item 4C730
Mfr. Model DJ-3
These draft inducers install into the exhaust section of combustion systems and help to start the draft airflow. They are not OEM-specific and will work in a wide variety of systems and installations.
Brand
TJERNLUND
TJERNLUND
Application
Boilers; Furnaces; Water Heaters
Boilers; Furnaces; Water Heaters
Minimum Vent Pipe Diamete
3 in
3 in
Maximum Vent Pipe Diameter
6 in
6 in
For Fuel Type
Coal; Natural Gas; Oil
Coal; Natural Gas; Oil
Maximum Heater BTU Input for Gas Appliance
377,000 BtuH
377,000 BtuH
Maximum Heater BTU Input for Oil Appliance
300,000 BtuH
300,000 BtuH
Maximum Heat Input109,000 Btu (Gas/Barometric); 111,000 Btu (Gas/Draft Hood); 92,000 Btu (Oil/Barometric)
Nameplate Voltage
115V AC
115V AC
Frequency
60 Hz
60 Hz
Current0.43 A
Maximum Motor Horsepower
1/70 hp
1/70 hp
Power Consumption
34 W
34 W
Maximum Static Pressure
0 in wc
0 in wc
Overall Height
8-3/4 in
8-3/4 in
Overall Width
8 in
8 in
Overall Depth
8-7/8 in
8-7/8 in
Manufacturer Part Number
DJ-3
DJ-3
UNSPSC
40101601
40101601
Country of Origin
USA
USA
Item 4C730Mfr. Model DJ-3
