Piloted Non Return Valve with Flow Regulator: 1/8 in Port, 0.24 in Tube, Polymer, 145 psi Max., Male
Valve Function
Flow Regulating Piloted Non-Return
Flow Regulating Piloted Non-Return
Valve Port Size
1/8 in
1/8 in
Valve Port Connection Gender
Male
Male
Valve Port Connection Type
BSPP
BSPP
Valve Tube Size
0.24 in
0.24 in
Valve Connection Type
BSPP x Tube
BSPP x Tube
Material
Polymer
Polymer
Maximum Valve Pressure Rating
145 psi
145 psi
Minimum Valve Temperature
23 °F
23 °F
Maximum Valve Temperature
140 °F
140 °F
Manufacturer Part Number
7894 06 10
7894 06 10
Brand
LEGRIS
LEGRIS
UNSPSC
40141609
40141609
Country of Origin
France
France

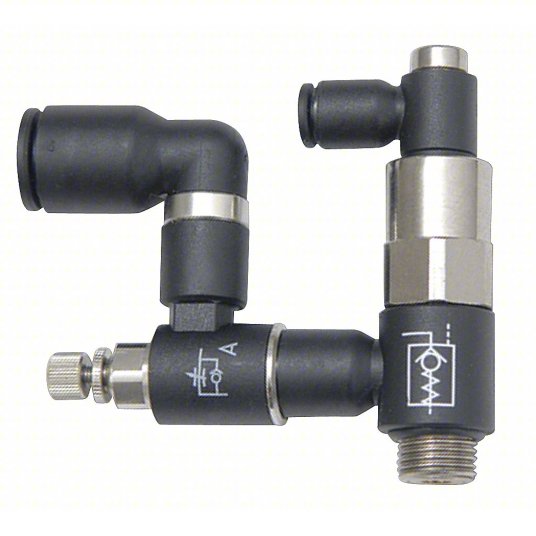

These valves connect to compatible pneumatic pistons and lock them in place in case of a power outage or air pressure loss. They feature integrated adjustment screws that allow users to tune the air pressure entering or exiting the piston.
Item 19H031
Mfr. Model 7894 06 10
