OMRON Latching Relay: Socket Mounted, 3 A Current Rating, 120V AC, DPDT, 10 Pins/Terminals, G Socket

OMRON Latching Relay: Socket Mounted, 3 A Current Rating, 120V AC, DPDT, 10 Pins/Terminals, G Socket

  • Sale
  • $138.00

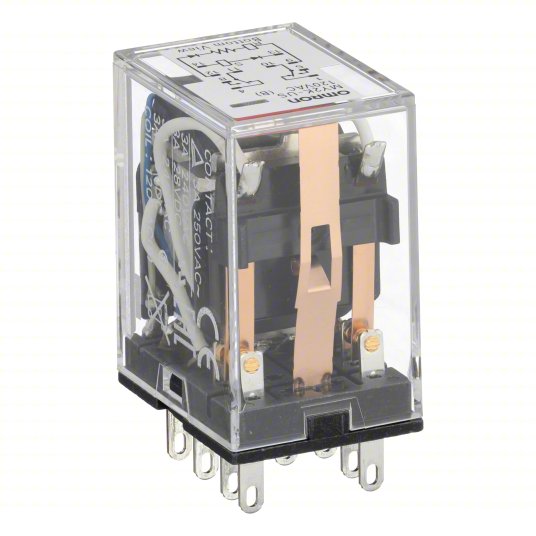

OMRON Latching Relay: Socket Mounted, 3 A Current Rating, 120V AC, DPDT, 10 Pins/Terminals, G Socket

Item 1YCU5

Mfr. Model MY2K-US-AC120

These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically

Brand
OMRON
Manufacturer Part Number
MY2K-US-AC120
Series
MY Series
Relay Mounting Style
Socket
Electrical Connection Type
Tab
Number of Pins/Terminals
10

Socket Code
G

Current Rating
3 A

Coil Voltage
120V AC

Contact Form
DPDT
Contact Rating (AC)

  • 0.8 A @ 240V
  • 3 A @ 240V
Contact Rating (DC)

  • 1.5 A @ 24V
  • 3 A @ 24V
Motor Rated
Yes_

Horsepower @ 120V AC
1/6 hp

Horsepower @ 240V AC
1/6 hp

Status Indicator
No Indicator
Push-To-Test Button
Manual Push Test Button
Electrical Operating Durability
200,000
Mechanical Operating Durability
100,000,000
Dielectric Strength1,500V AC (1000V AC Between Contacts of Same Polarity and Between Set and Reset Coils)
Sealing
Enclosed
Coil Voltage (Nominal@60Hz)
120V AC
UNSPSC
39121542
Country of Origin
Japan
