JET JT9-719500 JWL-1640EVS 1.5HP 16" X 40" Wood Lathe With Stand
Model #: WB535709
MPN #: JT9-719500

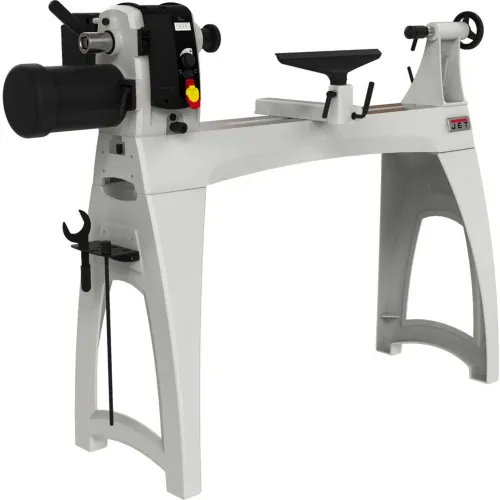

JET JWL-1640EVS 16" x 40" Wood Lathe
The new JET® 16' x 40' Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock that also pivots 360 degrees, electronic infinitely variable speed from 40 – 3200 RPM, and a newly designed headstock locking handle.
Headstock slides and rotates for maximum versatilityExtended spindle nose houses dual headstock spindle bearingsImproved tailstock quill locking mechanism incorporates an anti-rotation keyTailstock features Acme threads for smooth and durable movementBanjo uses non-marring, positive locking wedge system to securely hold tool postTool post locking mechanism designed for year of consistent strength Spindle lock latch frees up both hands Electronic infinitely variable speed from 40 – 3200 RPM36 integrated indexing positions Newly designed headstock locking handle accessible from front of lathe
The new JET® 16' x 40' Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock that also pivots 360 degrees, electronic infinitely variable speed from 40 – 3200 RPM, and a newly designed headstock locking handle.
Headstock slides and rotates for maximum versatilityExtended spindle nose houses dual headstock spindle bearingsImproved tailstock quill locking mechanism incorporates an anti-rotation keyTailstock features Acme threads for smooth and durable movementBanjo uses non-marring, positive locking wedge system to securely hold tool postTool post locking mechanism designed for year of consistent strength Spindle lock latch frees up both hands Electronic infinitely variable speed from 40 – 3200 RPM36 integrated indexing positions Newly designed headstock locking handle accessible from front of lathe
Weights & Dimensions
| Length | 73 in |
| Width | 52-1/2 in |
| Height | 20 in |
| Distance Between Centers | 40 in |
| Swing Over Bed | 16-1/2 in |
| Spindle Bore | 5/8 in |
| Swing Over Tool Rest Base | 12-7/8 in |
| Spindle Threads per Inch | 1-1/4/8 in |
Product Details
| Prewired Voltage | 115 V |
| Number of Indexing Positions | 36 |
| Motor Voltage | 115 V |
| Phase | 3 |
| Manufacturers Part Number | JT9-719500 |
| Motor Horsepower | 1-1/2 HP |
| Spindle Taper | MT2 |
| Brand | JET |
| Type | Wood Lathe |
| Tailstock Quill Travel | 4-1/4 |
| Amperage | 4.6 A |
| Spindle Speed | 40-3200 rpm |
| Stand/Legs Included | Yes |
| Style | Variable Speed |
| Voltage | 230 V |
| Bed Material | Cast Iron |
Warranty
| Warranty | 5 yr |
