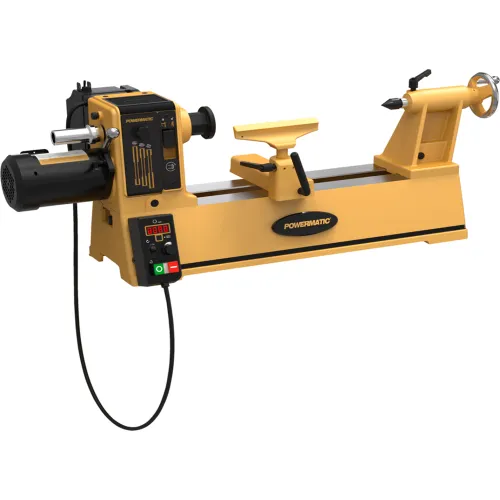

Powermatic 2014 PM Bench Lathe 1HP 115V Input
Model #: WBB2836494
MPN #: PM9-1792014
For nearly one hundred years Powermatic has pushed the limits of imagination to deliver superior equipment to dedicated woodworkers. We are proud to introduce the PM2014 lathe, our most accessible professional lathe. A tribute to previous Powermatic lathe generations, the PM2014 includes premium benefits and quality expected of a Powermatic.
Features:
Features:
- Motor only requires a 115 volt single phase input while providing a consistent torque with 1 horse power, 230 volt, and 3 phase output using an inverter.
- Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety
- Twenty four positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process
- Sliding headstock and removable tailstock make outboard turning easy
- Cast iron bed reduces motor vibration for decreased noise and added precision
- Variable speeds from as low 15RPMs to as high as 3600RPMs
- With constant monitoring of the motor the inverter keeps torque consistent.
- Lathe easily disassembles for better portability
- Acme threads on tail stock for smoother operation and longevity
- Includes 8 inch tool rest with 1 inch post
- Attached tool caddy allows convenient access to centers, wrenches, and accessories.
- Banjo features a non-marring, pinch style clamp for solid tool rest placement
- Chrome trimmed hand wheels are ergonomic for a comfortable feel
- Main power disconnect on rear of headstock lock out for safety
Weights & Dimensions
| Length | 52 in |
| Width | 24 in |
| Height | 18 in |
| Distance Between Centers | 19-1/4 in |
| Swing Over Bed | 14-1/4 in |
| Size | 20 x 14 in |
| Spindle Bore | 3/8 in |
| Swing Over Tool Rest Base | 10-3/4 in |
| Spindle Threads per Inch | 1-1/4/8 in |
Product Details
| Prewired Voltage | 115 V |
| Number of Indexing Positions | 24 |
| Phase | 3 |
| Manufacturers Part Number | PM9-1792014 |
| Motor Horsepower | 1 HP |
| Spindle Taper | MT2 |
| Brand | Powermatic |
| Type | Wood Lathe |
| Tailstock Quill Travel | 4-1/4 |
| Amperage | 3 A |
| Spindle Speed | 15-3600 rpm |
| Stand/Legs Included | No |
| Style | Benchtop |
| Voltage | 230 V |
| Bed Material | Cast Iron |
Warranty
| Warranty | 5 yr |
