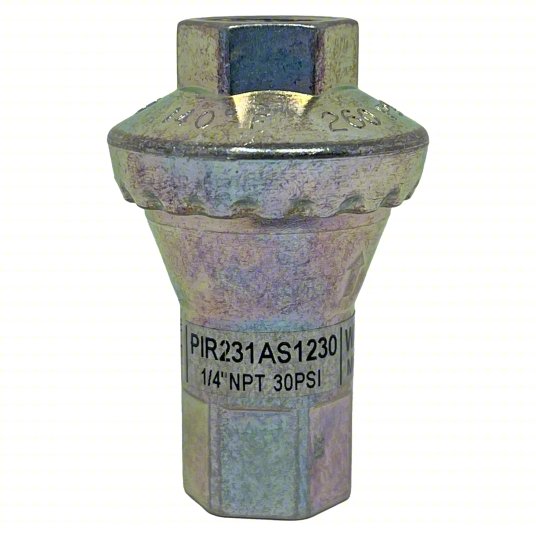

PROTECT AIR Miniature Regulator: 1/4 in Female NPT, 1/4 in Female NPT, Zinc, 274 psi Max Op Pressure
Inlet Connection
1/4 in Female NPT
1/4 in Female NPT
Outlet Connection
1/4 in Female NPT
1/4 in Female NPT
Maximum Operating Pressure
274 psi
274 psi
Maximum Pilot Adjustment
59.7 psi
59.7 psi
Tolerance
±4.35 psig
±4.35 psig
Body Material
Zinc
Zinc
Seal Material
Buna-N
Buna-N
Operating Temperature
32 °F to 140 °F
32 °F to 140 °F
Pipe Size
1/4 in
1/4 in
ApplicationCommercial Use; Industrial Use; Institutional Use; Light Commercial Use; Residential Use
Manufacturer Part Number
PIR231AS1245
PIR231AS1245
For Media
Air
Air
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Type
NPT
NPT
Operating Temperature - Maximum
140 °F
140 °F
Operating Temperature - Minimum
32 °F
32 °F
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/4 in
1/4 in
Overall Height
1-5/16 in
1-5/16 in
Overall Width
2-1/16 in
2-1/16 in
Outlet Connection Type
NPT
NPT
Country of Origin
Switzerland
Switzerland
These pressure regulators for compressed air systems supply constant, precise outlet pressure regardless of fluctuations in input pressure. They are diaphragm-style regulators that install in any compressed air system.
Item 808FF5
Mfr. Model PIR231AS1245
