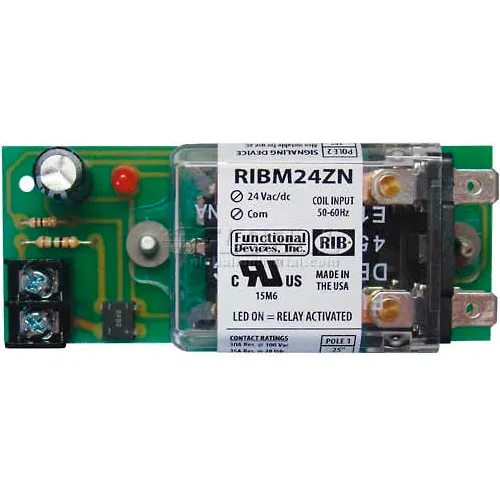

RIB® Panel Relay RIBM24ZN, 4" x 1.60", 30A, DPDT, 24VAC/DC
Model #: WBB1034380
MPN #: RIBM24ZN
RIB® Panel Relay RIBM24ZN, 4" x 1.60", 30A, DPDT, 24VAC/DC
The Power Series contains relays that are rated at 20 or 30 Amp. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
Weights & Dimensions
| Length | 1.6 in |
| Width | 4 in |
| Height | 1.75 in |
Product Details
| Number of Relays | 1 |
| Amperage | 30 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Operating Temperature | -30° To 140°F |
| Contact Type | DPDT |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Voltage | 24VAC/DC V |
| Description | Panel Relay |
| Manufacturers Part Number | RIBM24ZN |
| Brand | RIB |
Warranty
| Warranty | 1 yr |
Model #: WBB1034380
MPN #: RIBM24ZN
Compliance & Certifications
| Certifications | UL/cUL |
