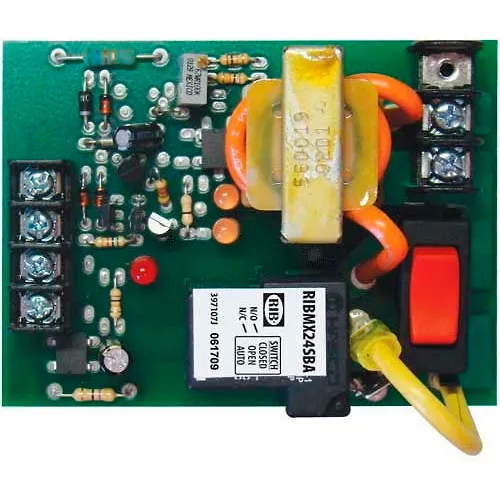

RIB® Panel Internal Current Sensor W/Relay RIBMX24SBA, 4", Adj., 20A,NO, 24VAC/DC, Override
Model #: WBB1034091
MPN #: RIBMX24SBA
RIB® Panel Internal Current Sensor W/Relay RIBMX24SBA, 4", Adj., 20A,NO, 24VAC/DC, Override
These Current Sensor / Relay combination units control and sense up to 20 Amp loads, without the use of an external current ring, greatly reducing installation time. Models are available with fixed, or adjustable current sensing trigger points, or with voltage out.
Weights & Dimensions
| Length | 2.95 in |
| Width | 4 in |
| Height | 1.25 in |
Product Details
| Number of Relays | 1 |
| Amperage | 20 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Operating Temperature | -30° To 140°F |
| Contact Type | SPST-NO |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Threshold | Adjustable |
| Voltage | 24VAC/DC V |
| Description | Panel Internal Current Sensor W/Relay & Override |
| Manufacturers Part Number | RIBMX24SBA |
| Brand | RIB |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL/cUL |
