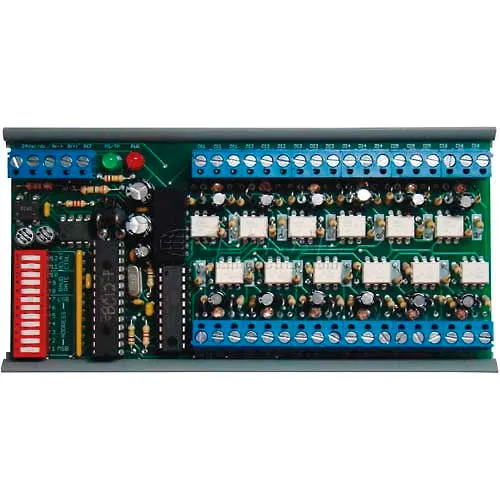

RIB® BacNet Panel Mount Device RIBMNWD12-BC, 2.75", 12 Digital Inputs W/Accumulators

  • Sale
  • $449.00


RIB® BacNet Panel Mount Device RIBMNWD12-BC, 2.75", 12 Digital Inputs W/Accumulators

Model #: WBB1034439

MPN #: RIBMNWD12-BC

RIB® BacNet Panel Mount Device RIBMNWD12-BC, 2.75", 12 Digital Inputs W/Accumulators

RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.

Weights & Dimensions

Length 5.85 in
Width 2.75 in
Height 1.75 in
Wire Size 16 in

Product Details

Number of Relays 1
Amperage 22 A
Humidity Range 5 To 95 Percent (Noncondensing)
Operating Temperature -30° To 140°F
Expected Relay Life 10 Million Cycles Minimum Mechanical
Voltage 24VAC/DC V
Includes 12 Digital Inputs W/Accumulators
Description BacNet Panel Mount Device
Manufacturers Part Number RIBMNWD12-BC
Wire Rating 600V
Brand RIB

Warranty

Warranty 1 yr

Compliance & Certifications

Certifications UL/cUL
