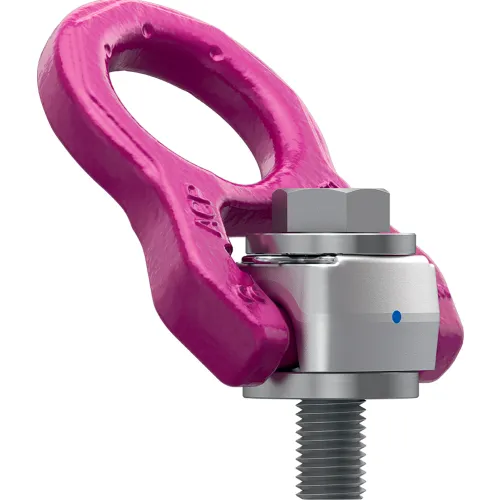

RUD 2.5 Ton, M16, Pivot, Swivel Load Ring
Model #: WBB2795283
MPN #: 7909316
Lifting points rotates 360 degrees. Pivoting 180 degrees. Unique RUD spring mechanism. Swivel joint in the lifting ring axis. Round lifting ring (no kinking possible). Rotating combination head with RUD ICE-Bolt. Wear indicators. Unsymmetrical application of force. Available in Metric or UNC thread. Maximum operation temperature range WITHOUT reduction of WLL -40 to 100 degree Celsius. MAximum operation temperature WITH reduction of WLL 350 degree Celsius.
Weights & Dimensions
| Length | 5 in |
| Width | 3 in |
| Height | 1-9/16 in |
| Weight Capacity | 4400 |
| Weight | 0.88 kg lbs |
| Dimension T | 107 in |
| Dimension K | 76 |
| Dimension B | 14 in |
| Dimension L | 58 |
| Dimension J | 24 in |
| Dimension D | 50 in |
| Dimension E | 40 in |
| Dimension F | 22 |
| Dimension C | 14 in |
| Bail Opening | 1.9688 in |
| Dimension H | 68 |
| Dimension M | M16 |
| Bolt Size | M16 in |
| Dimension G | 36 in |
| Dimension N | 10 |
| Working Load Limit | 2500kg lbs |
Product Details
| Assembly Required | No |
| Material | Steel |
| Manufacturers Part Number | 7909316 |
| Brand | RUD |
| Color | Pink |
| Hook Type | Bolt on |
| Package Quantity | 1 |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | MD 2006/42/EC |
