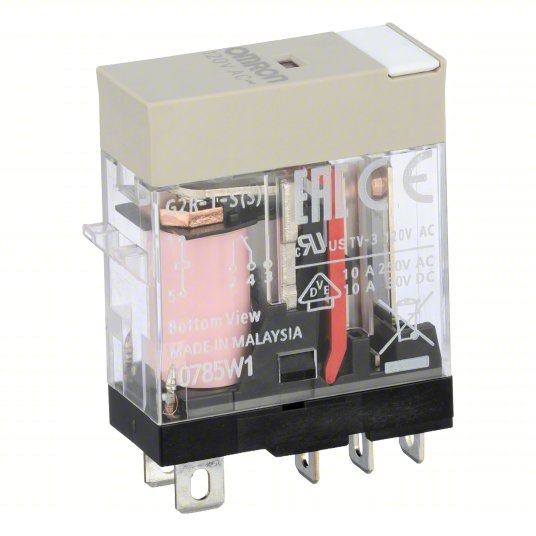

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, SPDT, 5 Pins/Terminals

Item
4FE15

These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically.

Brand
OMRON
Manufacturer Part Number
G2R-1-S-AC120(S)
Series
G2RS Series
Relay Mounting Style
Socket
Electrical Connection Type
Tab
Number of Pins/Terminals
5

Socket Code
H

Current Rating
10 A

Coil Voltage
120V AC

Contact Form
SPDT
Contact Rating (AC)

  • 7.5 A @ 250V
  • 10 A @ 250V
Contact Rating (DC)

  • 5 A @ 30V
  • 10 A @ 30V
Motor Rated
Yes_

Horsepower @ 120V AC
1/3 hp

Horsepower @ 240V AC
1/2 hp

Status Indicator
Mechanical Flag
Push-To-Test Button
Manual Push Test Button
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Dielectric Strength1,000V AC Between Contacts of Same Polarity; 5,000V AC Between Coil and Contacts
Sealing
Enclosed
Coil Voltage (Nominal@60Hz)
120V AC
UNSPSC
39121514
Country of Origin
Malaysia
Item 4FE15
Mfr. Model G2R-1-S-AC120(S)
