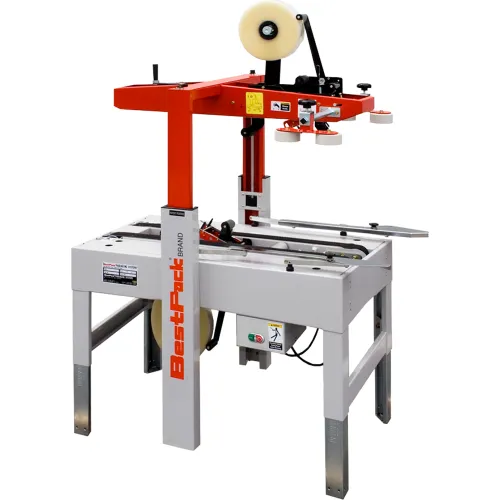

BestPack™ MBD22 Semi-Automatic Adjustable Case Sealer, Bottom Belt Drive, 2" Tape Head
machine tape sold separatley
Model #: WBB2254699
MPN #: MBD22-2
The semi-automatic adjustable case sealer designed to efficiently fulfill light to heavy duty uniform carton sealing applications. Using 2" wide tape, it seals the top and bottom of cases ranging in length for 6" and up, width of 6.5-20" and height of 3-20.25".
Features:
- Heavy duty 2mm CNC cut and welded frame including upper welded legs
- Self-centering guide rail mechanism
- Height adjustment can be done from either side of the carton sealer
- Exclusive pop-out high speed tape heads with patented tab adjustment and noise reduction arm
- Exclusive 4 roller upper side compression comes standard
- Adjustable bed height
- Electrical on/off box can be mounted on either side of the carton sealer
- This product has a limited warranty of 1 year
Weights & Dimensions
| Weight | 310 lbs |
| Min Box Weight | 0.5 lbs |
| Machine Length | 42 in |
| Max Box Length | Unlimited |
| Machine Height | 70-5/16 in |
| Cord Length | 7 ft |
| Tape Width | 2 in |
| Machine Width | 28-13/16 in |
| Min Box Width | 6-1/2 in |
| Min Box Height | 3 in |
| Max Box Height | 20-5/16 in |
| Max Box Width | 20 in |
| Min Box Length | 6 in |
| Conveyor Height Adjustment | 23-1/2 - 30" |
Product Details
| Assembly Required | No |
| Box Belt Speed | 80 ft. Per Minute |
| Operating Speed | 20 Boxes/Minute |
| Wattage | 165 W |
| Manufacturers Part Number | MBD22-2 |
| Brand | BestPack |
| Type | Bottom Belt Drive |
| Color | Gray |
| Amperage | 1.5 A |
| Series | MBD22 |
| Hertz | 60 Hz |
| Voltage | 110 V |
| Package Quantity | 1 |
| Description | Manual Adjustable Case Sealer |
