Silicone Foam with High Temp Adhesive-1/2" Thick x 12" Wide x 24" Long

  • Sale
  • $299.00


Silicone Foam with High Temp Adhesive-1/2" Thick x 12" Wide x 24" Long

Model #: WBB2266348

MPN #: ZUSASSR-36

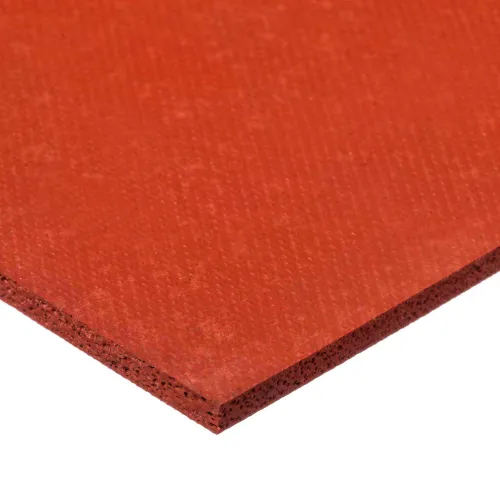

These gasket sheets are made from Silicone foam. Silicone displays excellent resistance to high and low temperatures, and long-lasting material that returns to its shape after compression longer than other foam materials. The textured skin provides more grip. Common characteristics include wide operating temperature, compression set resistance, resistance to UV and ozone, extreme resilience to mechanical fatigue, and good chemical and water resistance. Applications include gaskets, heat shields, fire stops, cushions, and insulation for a wide variety of applications.

Weights & Dimensions

Length 2 ft
Width 12 in
Height 1/2 in
Tensile Strength 90 psi
Density 39 Lbs / Cu. Ft. lbs/ft³
Thickness 1/2 in

Product Details

Firmness Medium
Material Temperature Range -100 to 500 °F
Material Silicone
Manufacturers Part Number ZUSASSR-36
Chemical Resistance Good
Flame Retardant No
Adhesive Temperature Range -100 to 500 °F
Shape Sheet
Brand USA Sealing
Type Sheet
Color Red
Adhesive Backing Style High Temp Adhesive
Temperature Range -100 to 500 °F
UV Resistance Excellent
Finish Textured
Package Quantity 1
Description Silicone Foam With High Temp Adhesive
Backing Type High Temp Adhesive
Texture Textured
Compression Deflection @ 25% Deflection (PSI) 9 PSI
Grade Standard
Oil Resistance Good
Cell Type Closed Cell

Compliance & Certifications

Certifications ASTM D1056 2D3
