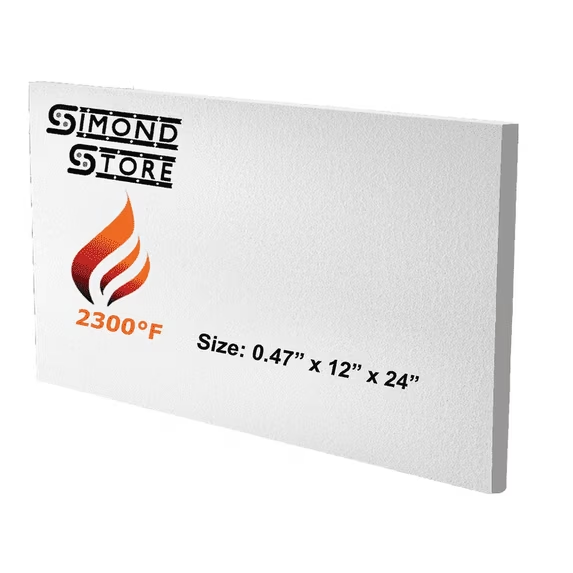

Simond Store Ceramic Fiber Insulation Board, 2300F, 0.47 inch X 12 inch X 24 inch, Ceramic Thermal Insulation Board
Ceramic Fiber Insulation is the best solution for your high temperature insulation. The mixture of refractory fibers and binders, which have low organic content is vacuum processed into high temperature ceramic fiber board that imparts good mechanical strength even after heating. Ceramic Board is a refractory board that has low thermal conductivity and high tensile strength and excellent resistance against thermal shock and chemical attack. Upon initial use at a specific temperature, the organic binder burns and turns the board to brownish giving a slight odor. Once the binder is burnt out it will be pure white and odorless. Simond Store offers the widest range of ceramic fiber products such as ceramic fiber board, ceramic fiber blanket, ceramic fiber module, ceramic fiber paper, ceramic fiber paper tape, ceramic rope, and ceramic wool (ceramic bulk fiber loose) in the USA with thousands of satisfied customer base in a short span. Ceramic Insulation Board is rated up to 2300F (1260C) peak and 2100F (1149C) continuous use with a melting point of 3200F (1760C). Refractory Ceramic Fiber Board (RCF) is manufactured in various densities, temperature grades, widths lengths. Ceramic Fiber Insulation Board is ideal for use in Wood Stove, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stove, Pellet Stoves, Backup Insulation of Refractory Bricks, and Castable Linings, Furnace Hot Face Linings and Boiler Wall Insulation, heat shields, combustion chambers, and fire protection.
- Maximum Use Temperature: This high temperature board has maximum use temperature of up to 2300F | Density: 20-24 lb/ft³
- Compressive Strength: Vacuum cast ceramic fiber refractory board has strength at 25% deformation - 78 PSI, Permanent Linear Shrinkage - 3.5% Max at 2200F when exposed to 24 hours soaking heat, Loss of Ignition (LOI) at 1832F: 4-7%
- Easy to cut: This fire board can be easily cut with a knife or hacksaw blade and can be drilled and machined. This Ceramic board is not as strong as fire brick, it dents easily
- Limitless Applications: Fireproof board used in various types of heating equipment such as Wood Stoves, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stove, Pellet Stoves, Backup Insulation of Refractory Bricks and Castable Linings, Furnace Hot Face Linings and Boiler Wall Insulation, heat shields, combustion chambers and fire protection
- Thermal Endurance: This ceramic fiber insulation board offers a maximum use temperature of 2300F and a continuous use temperature of 2100F, with a melting point of 3200F.
- Robust Composition: Vacuum cast from refractory fibers and binders, it maintains good mechanical strength even after heating, exhibiting low thermal conductivity and high tensile strength.
- Workable Material: Easily cut with a knife or hacksaw, and can be drilled and machined, though it is less strong than fire brick and dents easily.
- Structural Integrity: Features a compressive strength of 78 PSI at 25% deformation and a permanent linear shrinkage of 3.5% maximum at 2200F after 24 hours of soaking heat.
- Versatile Applications: Ideal for various heating equipment including wood stoves, fireplaces, pizza ovens, kilns, forges, and as backup insulation for refractory bricks and castable linings.
Brand
Simond Store
Color
White
Rec location
Window
Features
Energy Efficient
Material
Refractory Fibers
Size
0.47" × 12" × 24" Ceramic Fiber Board
Shape
Rectangular
Pieces
1
Model
V2-1224
Has written warranty
No
Assembled product weight
6 lb
