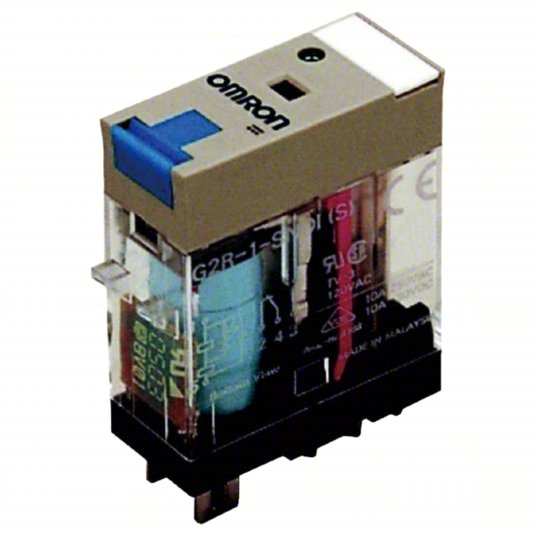

OMRON General Purpose Relays: 24V DC, SPDT, 5 Pins/Terminals
Item 811T02
Mfr. Model G2R-1-SNI DC24(S)
These relays have pins that plug into relay sockets to make quick electrical connections with circuits. Also known as ice cube relays, they don't require tools for removal or installation and are ideal for applications where relays are changed periodically
Brand
OMRON
OMRON
Manufacturer Part Number
G2R-1-SNI DC24(S)
G2R-1-SNI DC24(S)
Series
G2RS
G2RS
Electrical Connection Type
Pin
Pin
Number of Pins/Terminals
5
5
Coil Voltage
24V DC
24V DC
Contact Form
SPDT
SPDT
Contact Rating (AC)
- 7.5 A @ 250V
- 10 A @ 250V
Contact Rating (DC)
- 5 A @ 30V
- 10 A @ 30V
Status Indicator
LED Indicator
LED Indicator
Push-To-Test Button
Manual Push Test Button
Manual Push Test Button
Electrical Operating Durability
100,000
100,000
Mechanical Operating Durability
10,000,000; 20,000,000
10,000,000; 20,000,000
Dielectric Strength1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity; 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Coil Voltage (Nominal@60Hz)
24V DC
24V DC
Country of Origin
Malaysia
Malaysia
