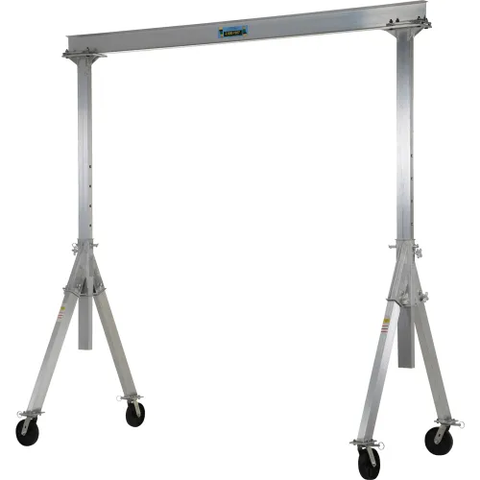

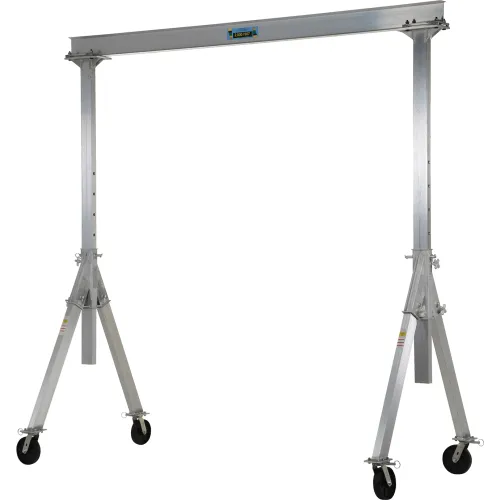

Adjustable Height Aluminum Gantry Crane, 12'W x 9'6"-12'H, 2,000 lb. Capacity

  • Sale
  • $5,579.00


Adjustable Height Aluminum Gantry Crane, 12'W x 9'6"-12'H, 2,000 lb. Capacity

Model #: WB241354

MPN #: AHA-2-12-12

Adjustable Height Aluminum Gantry Crane, 12'W x 9'6"-12'H, 2,000 lb. Capacity - AHA-2-12-12 High-strength, corrosion resistant all-Aluminum Gantry Crane is ideal for use outdoors or in wet environments. Lightweight construction allows for easy movement and height adjustment in 6" increments without the use of a forklift. Pin connectors and I-Beam mounting plate allow single person set up and disassembles in minutes. Includes 2 straps to transport in one neat package. 54" Base Depth with four durable 4-position swivel lock phenolic wheel casters. Note: Use Crane to Lift Loads only.**Height is measured from underside of I-Beam to Floor NOTE: All gantries should be inspected frequently to insure safe operation. Final testing and inspection is left to end user after final assembly has been completed. For further details see ASME B30.17.

Weights & Dimensions

Width 12 ft
Weight Capacity 2000 lbs
Weight 246 lbs
Base Diameter Or Dimension 54 in
Max Height 12'
Min Height 9' 6
Flange Width 4 in
I-Beam Height 8 in

Product Details

Assembly Required Yes
Type Adjustable Height
Color Gray
Material Aluminum
Manufacturers Part Number AHA-2-12-12
Brand Vestil

Model #: WB241354

MPN #: AHA-2-12-12
