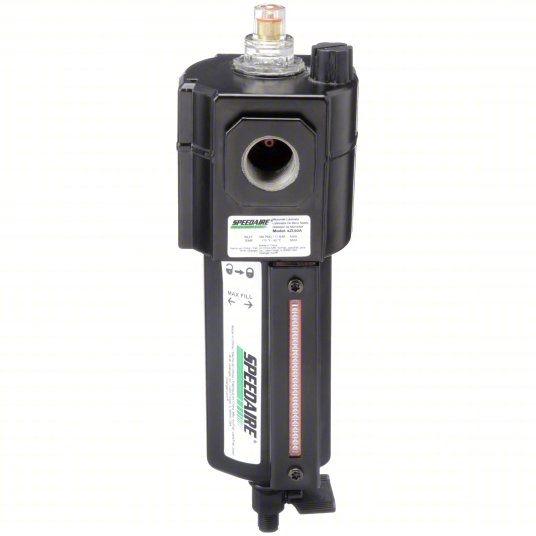

SPEEDAIRE Compressed Air Lubricator: Micro Mist, 1/2 in NPT, 154 cfm, 250 psi Max Op Pressure
Brand
SPEEDAIRE
SPEEDAIRE
Lubricator Type
Micro Mist
Micro Mist
Inlet Size
1/2 in NPT
1/2 in NPT
Maximum Flow Rate
154 cfm
154 cfm
Maximum Operating Pressure
250 psi
250 psi
Maximum Operating Temperature
175 °F
175 °F
Adjustment Mechanism
Screwdriver
Screwdriver
Lubricator Bowl Capacity
7 oz
7 oz
Body Material
Aluminum
Aluminum
Overall Width
3-1/8 in
3-1/8 in
Series
Standard Duty
Standard Duty
Sight Dome Included
Yes
Yes
Sight Gauge Included
Yes
Yes
Manufacturer Part Number
4ZL92
4ZL92
Air Inlet Size
1/2 in
1/2 in
Air Inlet Type
NPT
NPT
Air Inlet Gender
Female
Female
Lubricator Bowl Material
Aluminum
Aluminum
Adjustment Mechanism Material
PE
PE
Air Flow Direction
Left to Right
Left to Right
Air Outlet Gender
Female
Female
Air Outlet Size
1/2 in
1/2 in
Air Outlet Type
NPT
NPT
Connection Style
Main Line
Main Line
Drain Included
Yes
Yes
Drain Part Compatbility
114X38
114X38
Duty Rating
Intermediate Duty
Intermediate Duty
For Fluid Type
Compressed Air
Compressed Air
For Maximum Pipe Run
50 ft
50 ft
For Substance Type
Air
Air
Includes
(1) Oil Drop Controller
(1) Oil Drop Controller
Lubricator Bowl Guard Included
No
No
Lubricator Bowl Guard Material
Aluminum
Aluminum
Minimum Operating Temperature
5 °C
5 °C
Number of Air Inlets
1
1
Number of Air Outlets1
Oil Capacity
155 ct
155 ct
Overall Height
8-13/16 in
8-13/16 in
Recommended LubricantISO VG 32
Seal Material
Rubber
Rubber
Weight
0.8 kg
0.8 kg
UNSPSC27131604
Country of Origin
China
China
These FRL lubricators deliver oil to downstream components to help improve performance and reduce wear. They are a component of a Speedaire FRL system.
