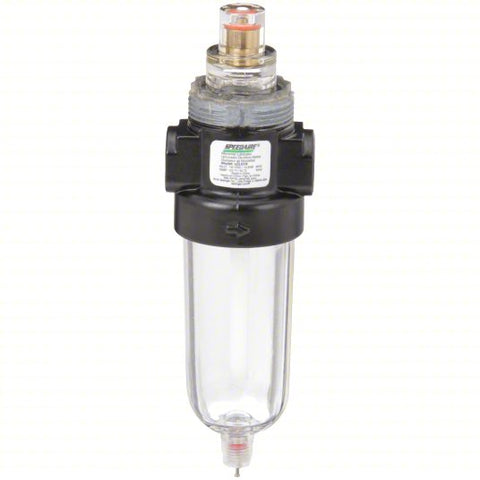

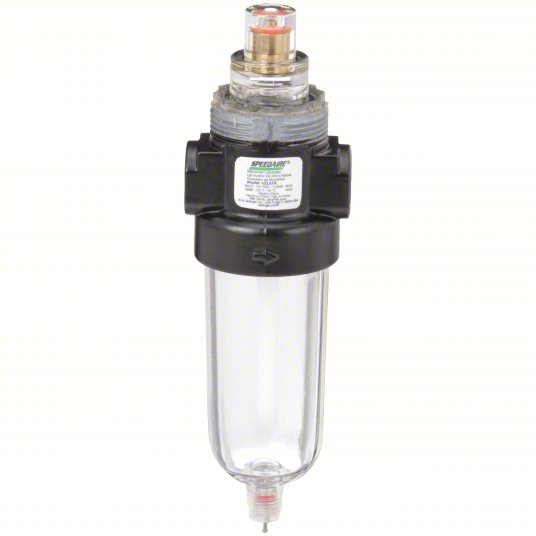

SPEEDAIRE Compressed Air Lubricator: Micro Mist, 1/4 in NPT, 14 cfm, 150 psi Max Op Pressure, Zinc
These FRL lubricators deliver oil to downstream components to help improve performance and reduce wear. They are a component of a Speedaire FRL system.
Brand
SPEEDAIRE
SPEEDAIRE
Lubricator Type
Micro Mist
Micro Mist
Inlet Size
1/4 in NPT
1/4 in NPT
Maximum Flow Rate
14 cfm
14 cfm
Maximum Operating Pressure
150 psi
150 psi
Maximum Operating Temperature
125 °F
125 °F
Adjustment Mechanism
Screwdriver
Screwdriver
Lubricator Bowl Capacity
1 oz
1 oz
Body Material
Zinc
Zinc
Overall Width
1-5/8 in
1-5/8 in
Series
Miniature
Miniature
Sight Dome Included
Yes
Yes
Sight Gauge Included
Yes
Yes
Manufacturer Part Number
4ZL57
4ZL57
Air Inlet Size
1/4 in
1/4 in
Air Inlet Type
NPT
NPT
Air Inlet Gender
Female
Female
Lubricator Bowl Material
Polycarbonate
Polycarbonate
Adjustment Mechanism Material
PE
PE
Air Flow Direction
Left to Right
Left to Right
Air Outlet Gender
Female
Female
Air Outlet Size
1/4 in
1/4 in
Air Outlet Type
NPT
NPT
Connection Style
Air Line
Air Line
Drain Included
Yes
Yes
Drain Part Compatbility
1AKJ2A
1AKJ2A
Duty Rating
Light Duty
Light Duty
For Fluid Type
Compressed Air
Compressed Air
For Maximum Pipe Run
50 ft
50 ft
For Substance Type
Air
Air
Includes
(1) Oil Drop Controller
(1) Oil Drop Controller
Lubricator Bowl Guard Included
No
No
Minimum Operating Temperature
5 °C
5 °C
Number of Air Inlets
1
1
Number of Air Outlets
1
1
Oil Capacity20 ct
Overall Height
5-1/2 in
5-1/2 in
Recommended Lubricant
ISO VG 32
ISO VG 32
Seal MaterialRubber
Weight
0.15 kg
0.15 kg
UNSPSC
27131604
27131604
Country of OriginChina
Item 4ZL57
Mfr. Model 4ZL57
