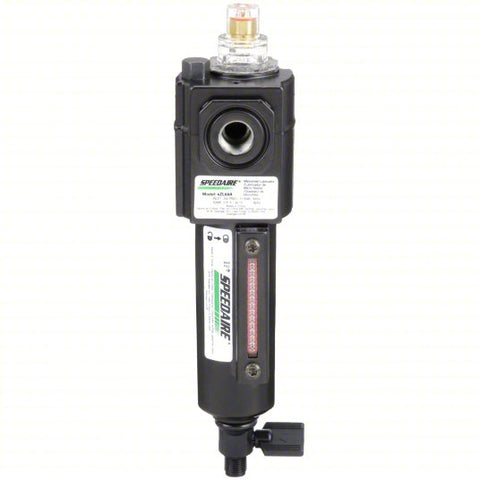

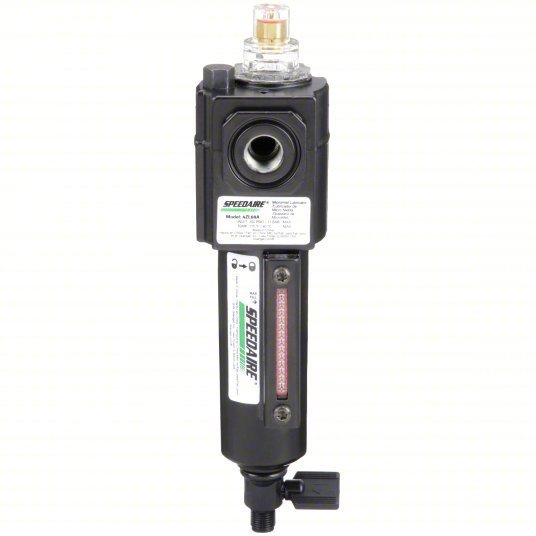

SPEEDAIRE Compressed Air Lubricator: Micro Mist, 1/4 in NPT, 50 cfm, 250 psi Max Op Pressure, Zinc
Brand
SPEEDAIRE
SPEEDAIRE
Lubricator TypeMicro Mist
Inlet Size
1/4 in NPT
1/4 in NPT
Maximum Flow Rate
50 cfm
50 cfm
Maximum Operating Pressure250 psi
Maximum Operating Temperature
175 °F
175 °F
Adjustment Mechanism
Screwdriver
Screwdriver
Lubricator Bowl Capacity2.2 oz
Body Material
Zinc
Zinc
Overall Width
2 in
2 in
SeriesCompact
Sight Dome Included
Yes
Yes
Sight Gauge Included
Yes
Yes
Manufacturer Part Number
4ZL68
4ZL68
Air Inlet Size
1/4 in
1/4 in
Air Inlet Type
NPT
NPT
Air Inlet Gender
Female
Female
Lubricator Bowl Material
Zinc
Zinc
Adjustment Mechanism Material
PE
PE
Air Flow Direction
Left to Right
Left to Right
Air Outlet Gender
Female
Female
Air Outlet Size
1/4 in
1/4 in
Air Outlet Type
NPT
NPT
Connection Style
Air Line
Air Line
Drain Included
Yes
Yes
Drain Part Compatbility
114X36
114X36
Duty Rating
Light Duty
Light Duty
For Fluid Type
Compressed Air
Compressed Air
For Maximum Pipe Run
50 ft
50 ft
For Substance Type
Air
Air
Includes
(1) Oil Drop Controller
(1) Oil Drop Controller
Lubricator Bowl Guard Included
No
No
Lubricator Bowl Guard Material
Zinc
Zinc
Minimum Operating Temperature
5 °C
5 °C
Number of Air Inlets
1
1
Number of Air Outlets
1
1
Oil Capacity
80 ct
80 ct
Overall Height
7-7/16 in
7-7/16 in
Recommended Lubricant
ISO VG 32
ISO VG 32
Seal Material
Rubber
Rubber
Weight
0.7 kg
0.7 kg
UNSPSC
27131604
27131604
Country of Origin
China
China
These FRL lubricators deliver oil to downstream components to help improve performance and reduce wear. They are a component of a Speedaire FRL system.
Item 4ZL68
Mfr. Model 4ZL68
