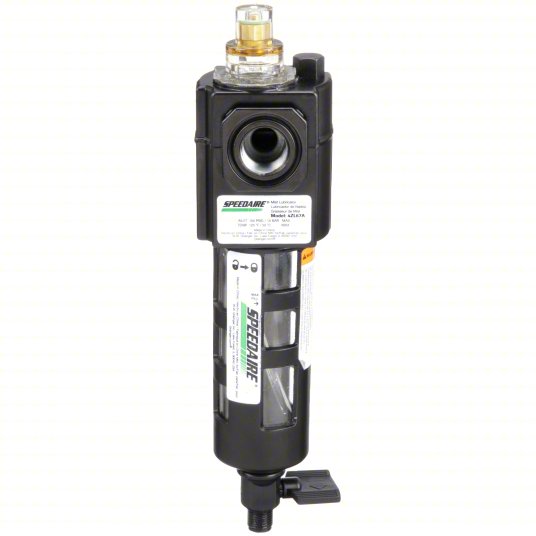

SPEEDAIRE Compressed Air Lubricator: Mist, 3/8 in NPT, 50 cfm, 150 psi Max Op Pressure, Screwdriver
These FRL lubricators deliver oil to downstream components to help improve performance and reduce wear. They are a component of a Speedaire FRL system.
Brand
SPEEDAIRE
SPEEDAIRE
Lubricator TypeMist
Inlet Size3/8 in NPT
Maximum Flow Rate
50 cfm
50 cfm
Maximum Operating Pressure150 psi
Maximum Operating Temperature125 °F
Adjustment Mechanism
Screwdriver
Screwdriver
Lubricator Bowl Capacity2.2 oz
Body MaterialZinc
Overall Width
2 in
2 in
SeriesCompact
Sight Dome IncludedYes
Sight Gauge Included
Yes
Yes
Manufacturer Part Number
4ZL67
4ZL67
Air Inlet Size
3/8 in
3/8 in
Air Inlet Type
NPT
NPT
Air Inlet Gender
Female
Female
Lubricator Bowl Material
Polycarbonate with Zinc Guard
Polycarbonate with Zinc Guard
Adjustment Mechanism Material
PE
PE
Air Flow Direction
Left to Right
Left to Right
Air Outlet Gender
Female
Female
Air Outlet Size
3/8 in
3/8 in
Air Outlet Type
NPT
NPT
Connection Style
Air Line
Air Line
Drain Included
Yes
Yes
Drain Part Compatbility
1AKG8A
1AKG8A
Duty Rating
Light Duty
Light Duty
For Fluid Type
Compressed Air
Compressed Air
For Maximum Pipe Run
20 ft
20 ft
For Substance Type
Air
Air
Includes
(1) Oil Drop Controller
(1) Oil Drop Controller
Lubricator Bowl Guard Included
No
No
Lubricator Bowl Guard Material
Iron
Iron
Minimum Operating Temperature
5 °C
5 °C
Number of Air Inlets
1
1
Number of Air Outlets
1
1
Oil Capacity
5 ct
5 ct
Overall Height
7-7/16 in
7-7/16 in
Recommended Lubricant
ISO VG 32
ISO VG 32
Seal Material
Rubber
Rubber
Weight
0.625 kg
0.625 kg
UNSPSC
27131604
27131604
Country of Origin
China
China
Item 4ZL67
Mfr. Model 4ZL67
