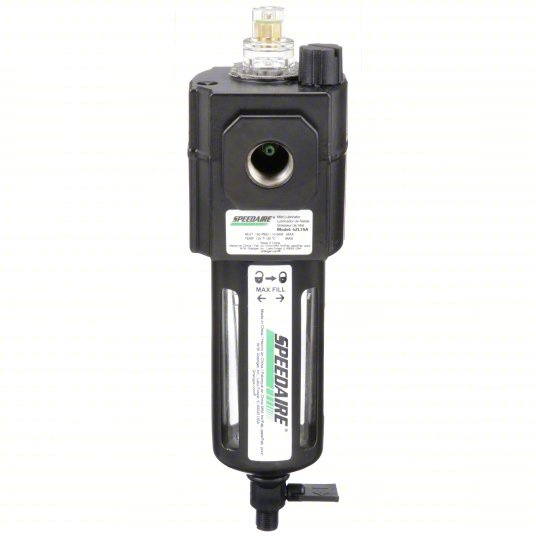

SPEEDAIRE Compressed Air Lubricator: Mist, 3/8 in NPT, 75 cfm, 150 psi Max Op Pressure, Screwdriver
Brand SPEEDAIRE
Lubricator Type Mist
Inlet Size 3/8 in NPT
Maximum Flow Rate 75 cfm
Maximum Operating Pressure 150 psi
Maximum Operating Temperature 125 °F
Adjustment Mechanism Screwdriver
Lubricator Bowl Capacity 3.5 oz
Body Material Aluminum
Overall Width 2-11/16 in
SeriesIntermediate Duty
Sight Dome Included Yes
Sight Gauge Included yes
Manufacturer Part Number 4ZL75
Air Inlet Size 3/8 in
Air Inlet Type NPT
Air Inlet Gender Female
Lubricator Bowl MaterialPolycarbonate with Steel Guard
Adjustment Mechanism MaterialPE
Air Flow DirectionLeft to Right
Air Outlet GenderFemale
Air Outlet Size 3/8 in
Air Outlet Type NPT
Connection Style Air Line
Drain Included Yes
Drain Part Compatbility 1AKG9A
Duty RatingIntermediate Duty
For Fluid TypeCompressed Air
For Maximum Pipe Run 20 ft
For Substance Type Air
Includes(1) Oil Drop Controller
Lubricator Bowl Guard Included No
Lubricator Bowl Guard MaterialIron
Minimum Operating Temperature5 °C
Number of Air Inlets1
Number of Air Outlets1
Oil Capacity80 ct
Overall Height8-1/8 in
Recommended LubricantISO VG 32
Seal MaterialRubber
Weight0.63 kg
UNSPSC27131604
Country of OriginChina
These FRL lubricators deliver oil to downstream components to help improve performance and reduce wear. They are a component of a Speedaire FRL system.
Item 4ZL75
Mfr. Model 4ZL75
