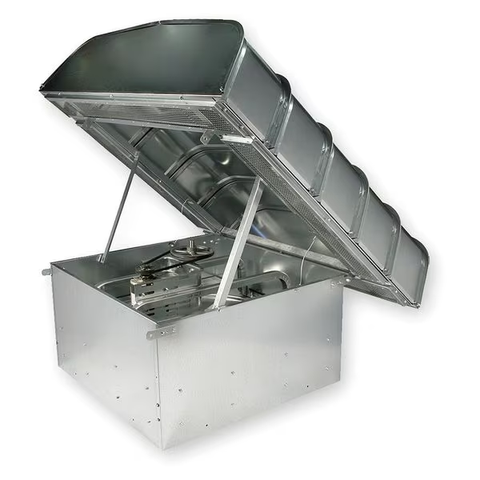

Steel 48"L, 39"H, 48"W, Roof Fan w.Motor
Mfr #
7AE61
mpn
G1885362
Axial Downblast Roof Supply Fan, Mounting Location Roof, Assembly Unassembled, Blade Diameter 24 in, Housing Material Steel, Exhaust Airflow @ 0.000 in SP 5,938 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 3/8 in wc, Motor Enclosure Open Dripproof, Motor Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Number of Speeds 1, Phase 3, Maximum Inlet Air Temperature 104 Degrees F, Number of Blades 6, Supply Airflow @ 0.000 in SP 5,938 cfm
MFR #
7AE61
mpn#
G1885362
UPC #
00799471519479
Country of Origin
Multiple
Dimensions
Blade Dia.
24 in
Base Size - Roof Ventilators
28 1/2 in x 28 1/2 in
Overall Height - Roof Ventilators
39 in
Overall Width - Roof Ventilators
48 in
Height (In.)
39
Dimension B (In.)
48
Dimension F (In.)
8-1/2
Dimension D
39 in
Dimension C
48 in
Dimension D (In.)
39
Propeller Dia. (In.)
24
Dimension A
28 1/2 in
Shaft Dia. (In.)
3/4 in
Dimension E
23 in
Width (In.)
48
Dimension C (In.)
48
Dimension F
8 1/2 in
Max. Depth (In.)
48 in
Base Square Size - Roof Ventilators
28-1/2" x 28-1/2"
Dimension A (In.)
28-1/2
Dimension B
48 in
Bearing Size (In.)
3/4 in
Dimension E (In.)
23
Overall Width
48 in
Overall Height
39 in
Base Width
28 1/2 in
Blade Diameter
24 in
Housing Length
28.5 in
Hood Height
16 in
Base Height
23 in
Hood Width
48 in
Damper Size
24 x 24 in
Hood Length
48 in
Base Length
28 1/2 in
Housing Width
28.5 in
Propeller Shaft Diameter
3/4 in
Overall Length
48 in
Details
Item - Roof Ventilators
Supply Ventilator
Drive Type - Roof Ventilators
Belt Drive
Voltage - Roof Ventilators
208-230V AC/460V AC
Motor HP - Roof Ventilators
3/4 hp
Motor Enclosure
Open Dripproof
Propeller Material
Steel
Motor HP
3/4
Full Load Amps
2.9-2.8/1.4
Fan RPM
1,352
Number of Blades
6
Recommended Gravity Backdraft Damper Item No.
2FTV7
Item
Axial Downblast Roof Supply Fan
CFM @ 0.375-In. SP
4,970 cfm
CFM @ 0.250-In. SP
5,352 cfm
Motor Type
3-Phase
Voltage
208-230/460
Includes
Drive Package, Hood
Max. Ambient Temp. (F)
104 Degrees F
Style - Roof Ventilators
Hooded
Frame Material
Galvanized Steel
Max. BHP
0.9 hp
Recommended 12 3/8"H Roof Curb Item No.
2ZV83
Bearing Type
Sealed Pillow Block
Mounting Position
Horizontal
Max. Inlet Temp. (Deg. F)
104 Degrees F
CFM @ 0.000-In. SP
5,938 cfm
Phase
3
CFM @ 0.125-In. SP
5,655 cfm
Type
Axial Belt Drive Downblast
Assembled/Unassembled
Unassembled
Recommended 6 3/8"H Roof Curb Item No.
4C454
Motor RPM
1,725 RPM
Hz
60 Hz
Maximum Inlet Air Temperature
104 Degrees F
Blade Material
Steel
Hood Type
Hinged Hood
Base Shape
Square
Mounting Orientation
Horizontal
Airflow @ 0.000 in SP
5,938 cfm
Nameplate Voltage
208-230/460V AC
Assembly
Unassembled
Compatible Curb Manufacturer Part Number
3AZH7
Resistance Properties
Weather Resistant
Safety Features
Birdscreen
Exhaust Airflow @ 0.250 in SP
5,352 cfm
Exhaust Airflow @ 0.375 in SP
4,970 cfm
Sound Level
30 sones @ 0.000 in SP and 5 ft
Frequency
60 Hz
Housing Material
Steel
Supply Airflow @ 0.000 in SP
5,938 cfm
Mount Type
Roof Curb
Includes Motor
Yes
For High-Static Pressure Applications
No
Standards
UL/cUL 705
Blade Finish
Galvanized
Drive Type
Belt Drive
Motor Horsepower
3/4 hp
Exhaust Airflow @ 0.000 in SP
5,938 cfm
Exhaust Airflow @ 0.125 in SP
5,655 cfm
Current
2.9-2.8/1.4 A
Housing Finish
Galvanized
Maximum Ambient Temperature
104 Degrees F
Motor Speed
1,725 RPM
Application
Factories, Large Facilities, Warehouses
Brake Horsepower
9/10 hp
Number of Speeds
1
Maximum Fan Speed
1,352 RPM
Maximum Static Pressure
3/8 in wc
Features
Strong and Weathertight Hood
High-Efficiency Motor
No
For Air Type
Clean Air
Speed Controllable
No
Includes Drive Package
Yes
