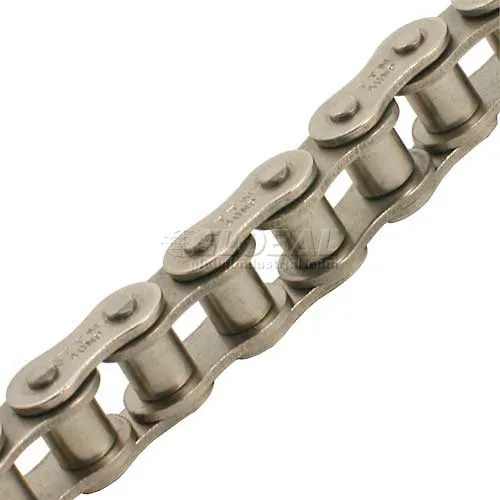

Tritan Precision Ansi Nickel Plated Roller Chain - 120-1np - 1 1/2" Pitch - 10ft Box

Tritan Precision Ansi Nickel Plated Roller Chain - 120-1np - 1 1/2" Pitch - 10ft Box

  • Sale
  • $1,499.00

Tritan Precision Ansi Nickel Plated Roller Chain - 120-1np - 1 1/2" Pitch - 10ft Box

Model #: WBB615602

MPN #: 120-1NP 10FT

Tritan Precision ANSI Roller Chain - 120-1NP - 1 1/2" Pitch - 10ft Box

Features:

  • Supplied in 10ft Box
  • Includes 1 Connecting Link
  • Conforms with ANSI B29.1
  • Pre-Stressed
  • Wide Waist design to combat fatigue
  • Plates are Ball Burnished & Shot Peened for increased performance
  • Solid Bushing design improves wear resistance
  • Additional Connecting Links & Offset links are also available & sold separately.

Weights & Dimensions

Length 10 ft
Height 1.41 in
Pin Diameter 0.437 in
Plate Thickness 0.189 in
Roller Diameter 0.875 in
Ultimate Tensile Strength 28551 lbs
Width Between Plates 0.993 in
Pitch 1.5 in

Product Details

Type Roller Chain
Material Riveted
Color Silver
Brand Tritan
