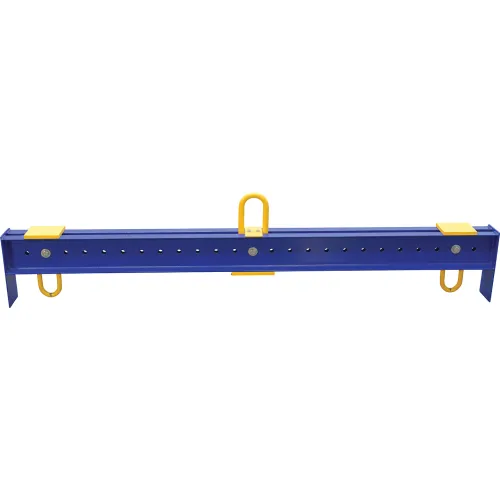

Adjustable Spreader Beam SBM-80 8000 Lb. Capacity
Model #: WB251540
MPN #: SBM-80
Lifts and moves uneven, awkward and unique shaped loads. Lower bails adjust at 4" increments along beam. Upper clevis slides between beam channels and adjusts in 4" increments. Made using welded steel channels with durable powder coat finish. Meets ASME B30.20-1993 standards.
Weights & Dimensions
| Length | 24-1/2 |
| Width | 6 in |
| Height | 104-1/2 in |
| Weight Capacity | 8000 lbs |
| Weight | 220 lbs |
| Spread | 8 to 96 in |
| Head Room | 20-3/4 in |
| Upper Bail | 4 x 7-1/4 in |
Product Details
| Assembly Required | No |
| Color | Blue |
| Material | Steel |
| Manufacturers Part Number | SBM-80 |
| Brand | Vestil |
