Counter-Balanced Floor Crane CBFC-500 500 Lb. Capacity
Model #: WBB184040
MPN #: CBFC-500

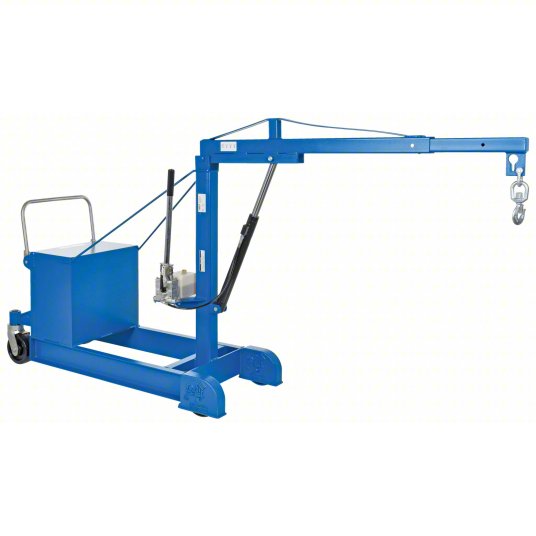

Counter Balanced Floor CraneThis Counter Balanced Floor Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas. Counterbalance included. Welded steel construction. 500 lb capacity. 24"H to 86"H adjustable range.
Weights & Dimensions
| Length | 135-1/8 in |
| Width | 29 in |
| Height | 62-1/4 in |
| Lowered Height | 5 in |
| Raised Height | 90 in |
| Weight | 1259 lbs |
| Boom Height | 5 to 90 in |
| Retracted Weight Capacity | 500 lbs |
| Extended Weight Capacity | 300 lbs |
| Load Wheel Diameter | 8 in |
| Boom Length | 53.5 to 77.5 in |
| Steer Wheel Diameter | 6 in |
Product Details
| Color | Blue |
| Material | Steel |
| Description | Counter Balanced Floor Crane |
| Manufacturers Part Number | CBFC-500 |
| Brand | Vestil |
Model #: WBB184040
MPN #: CBFC-500
