California Air Tools Electric Air Compressor, Vertical, 60 Gallon Capacity, 11.5 CFM, 3-11/16 HP
The Calair 60037BD Continuous Run 3.7 Hp Air Compressor is designed for Continuous Running up to 8 hours at 90 PSI.
The Calair 60037BD Air Compressor has a Pump System that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage.
The large 60 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory.
Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim & Impacting/Wrenching.
Designed for people looking for reliable air flow in commercial and semi-rugged environments.
Features:

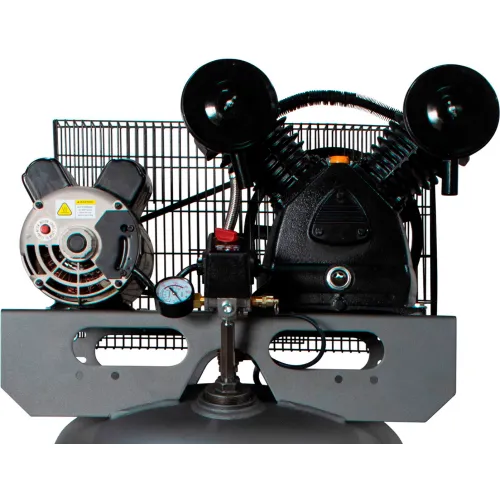

- Ultra3.7 Hp Motor with Reset Switch
- Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (2 cylinders)
- Pressure Gauge
- 1/2" NPTOutput Valve Port
- Power On/Pressure Switch
- Motor Thermal Overload Protector (Trips @ 135C)
- Working Pressure - 125 - 155 PSI
- 208 Volt (200V-216V) to 230 Volt (220V-240V) / 60 Hertz/ Single Phase
- 11.5 CFM @ 90 PSI, 13.6 CFM @ 40 PSI
- Continuous Run up to 8 hours (10 hours maximum)
- 16.7 Amp Draw
- Power Requirements:Dedicated 20 amp outlet
- Plug Type: NEMA 6-15P, Receptacle: NEMA 6-15R or 6-20R
- Maximum Operating (ambient) Temperatures:36 to 108°F
- Time to fill tank from empty to full (155 PSI) - 6 min 52 seconds
- Recovery time from 125 PSI to 155 PSI - 1 min 37 seconds
- Maximum Tank Pressure 180 PSI
- Manual Ball Drain Valve
- 200 PSI Safety Relief Valve
- 26"L x 20.5"W/D x 73.5"H
- 265 lbs.
- 90 Decibel Noise Level
- Commercial Use: Refer to State & City Codes
- 2 Year Limited Warranty on Pump; 1 Year Limited Warranty on all other
Weights & Dimensions
| Length | 26 in |
| Width | 20-1/2 in |
| Height | 73-1/2 in |
| Weight | 265 lbs |
| Tank Size | 60 gal |
Product Details
| Oil Type | Oil Lubricated |
| Air Dryer | No |
| Oil System | Oil Lubricated |
| Pump Drive | Belt Drive |
| Tank Drain Valve | Manual |
| Max PSI | 180 psi |
| Start Type | Electric |
| Material | Steel |
| Phase | 1 |
| Tank Orientation | Vertical |
| Manufacturers Part Number | CAIR-60037BD |
| Pump Type | Oil Lubricated |
| Brand | California Air Tools |
| Type | Stationary |
| CFM | 11.5 @ 90 PSI, 13.6 @ 40 PSI CFM |
| Horsepower | 3-11/16 HP |
| Color | Gray |
| After Cooler | No |
| Style | Vertical |
| Voltage | 208-230 V |
| Air Filter | Yes |
| Description | Oil-Lubricated Belt Driven Stationary Air Compressor |
| Noise Output | 90 dBA |
Warranty
| Warranty | 2 Years On Pump/1 Year On All Other Components yr |
Model # :WBB3177520
MPN #: CAIR-60037BD
